Pipe Puller / Joiner 20" Capacity, Wheeler Rex 4012

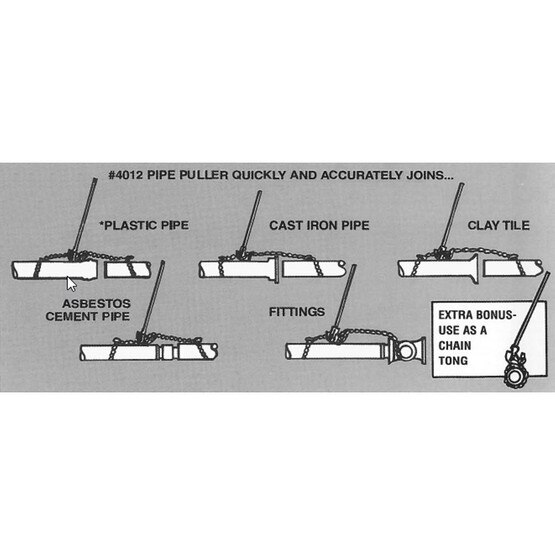

- For joining all types of gasketed pipe; plastic, cast iron, clay, and concrete.
- Comes with two 12 ft. long anchor chains. Also pulls fittings, valves, and couplings into place.
- Lightweight yet rugged, this tool operates on a basic lever action and is used easily by one man.
- Bend-resistant handle
- Rugged design for maximum durability
- Positive chain centering. Low pulling angle
- Pipe Capacity: 20"
Instructions

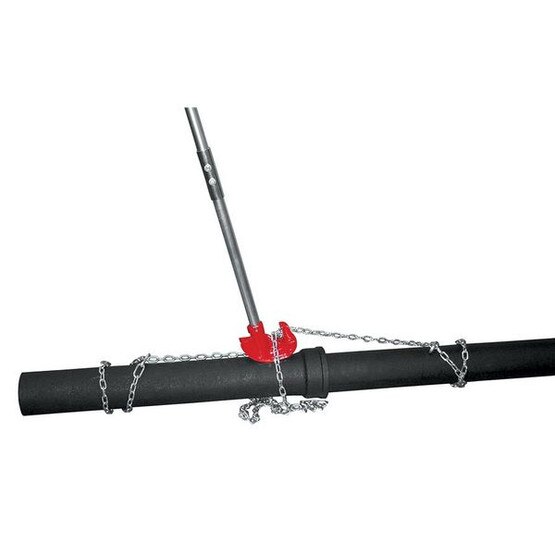

Wrap anchor chain around pipe two or three feet behind the coupling, fastening it tightly with a grab hook. Lay balance of chain along top of pipe toward coupling. Place pipe puller in vertical position over anchor chain and pull free and upward, dropping it into the slot.
Wrap the pulling chain around the pipe to be pulled, three to four feet ahead of the coupling. Fasten securely with the grab hook. Place the pulling chain in the slot on top of the anchor chain with the puller handle held in at a slightly forward slant. Both chains should be taut in this position.
Please click on the desired file to open it in another browser tab. If you'd like to download the document, you can do that from your browser controls.
Ratings & Reviews
2 reviews
good for large pipe
by Bert
glad I picked this up. we’ve been using it on larger pipe installs and it’s saved us a lot of time
good puller
by Marcos
Pulled a 20” line with no issues.worked great on a stormwater pipe install. lined everything up perfectly and held tight during the join.”
