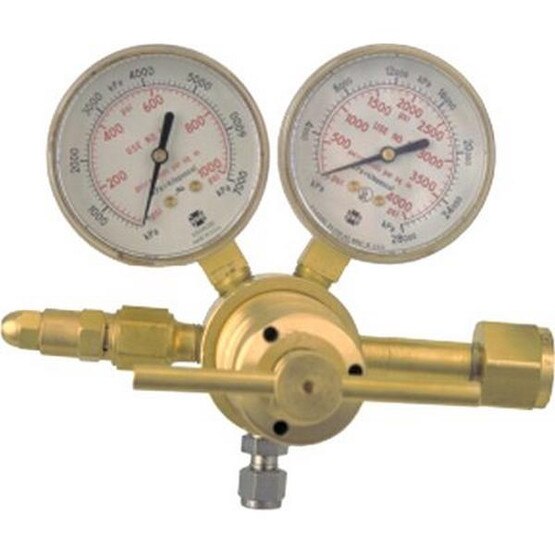

High Pressure Single Stage Piston Regulators, Inert Gas, CGA580, 3,000 psig - Victor 0781-1428
- All SR 4 series regulators have a swaged lock type stainless steel outlet fitting
- Cartridge type seat assembly with PCTFE seat
- Dead-end testing
- Delrin® cap bushing for smooth adjustments
- Delrin® cap bushing for smooth adjustments
- External adjustable relief valves on F and G range models
- High pressure
- Hydrogen models have ventable relief valves
- May be panel mounted
- Piston type actuation
- Single stage design
- Single stage design
More v
- Body Material: Machined Brass
- Depth [Nom]: 6 1/4 in
- Height [Nom]: 6 1/2 in
- Inlet Pressure [Max]: 3,000 psig
- Length [Nom]: 6 in
- Filter Material: Bronze; Sintered
- Flow Range: 100 - 1500 psig
- Gas Type: Inert Gas
- Outlet Pressure [Max]: 1,500 psig
- Outlet Pressure [Min]: 100 psig
- Inlet Connection: CGA 580
- Width [Nom]: 6 in
- Outlet Size: 1/4 in
- Outlet Type: Swagelok
- Wt.: 4 lb
