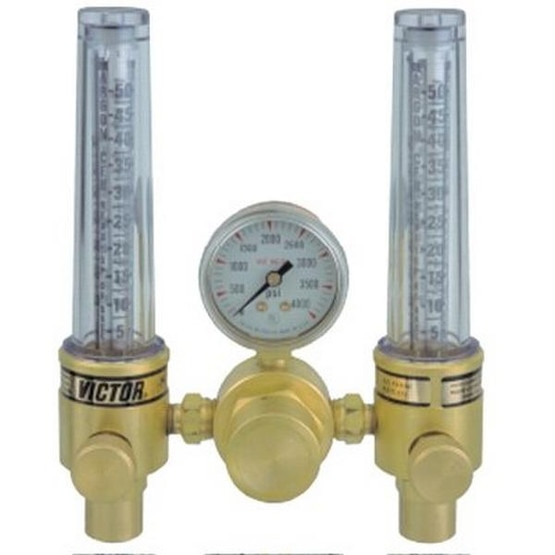

DFM Dual Flowmeter Regulator, Argon; Helium, CGA 580, 3,000 psig inlet - Victor 0781-1153
- Designed to monitor two separate processes or gas flows
- Designed to offer convenience for the maintenance and the fabrication industries
- Flowmeter shows actual flow
- If flow is shut-off or restricted downstream of the regulator, the flow gauge will show indicated flow even though there is none
More v
- Body Material: Brass
- Depth [Nom]: 5 in
- Height [Nom]: 6 1/2 in
- Inlet Pressure [Max]: 3,000 psig
- Length [Nom]: 6.5 in
- Filter Material: Sintered; Bronze
- Flow Range: 5 - 50 SCFH Argon; 20 - 150 Helium
- Gas Type: Argon; Helium
- Outlet Pressure [Max]: 25 psig
- Inlet Connection: CGA 580
- Width [Nom]: 5 1/2 in
- Outlet Connection: 5/8 in - 18 RH(F)
- Type: Regulator/Flowmeter
- Wt.: 2 9/16 lb
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
