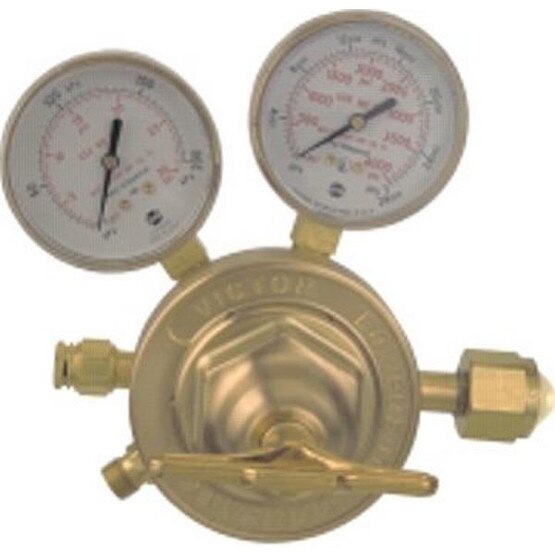

SR 450 Single Stage Heavy Duty Regulators, L.P. Gas, CGA 510, 3,000 psig inlet - Victor 0781-0595
- Delrin® cap bushing for smooth adjustments
- Delrin® cap bushing for smooth adjustments
- External self reseating relief valve not designed to protect downstream apparatus
- Medium to high gas service capacity
- Single stage design
- Single stage design
- Stem type seat mechanism
- Stem type seat mechanism
- Stem type seat mechanism
More v
- Body Material: Forged Brass
- Depth [Nom]: 5 1/8 in
- Diaphragm Material: Stainless Steel
- Diaphragm Size: 3 1/4 in
- Height [Nom]: 7 in
- Inlet Pressure [Max]: 3,000 psig
- Length [Nom]: 5.13 in
- Filter Material: Bronze; Sintered
- Gas Type: L.P. Gas
- Gauge Size: 2 1/2 in
- Outlet Pressure [Max]: 125 psig
- Outlet Pressure [Min]: 5 psig
- Inlet Connection: CGA 510
- Width [Nom]: 7 1/4 in
- Outlet Connection: 9/16 in - 18 (M)
- Wt.: 5 1/8 lb
