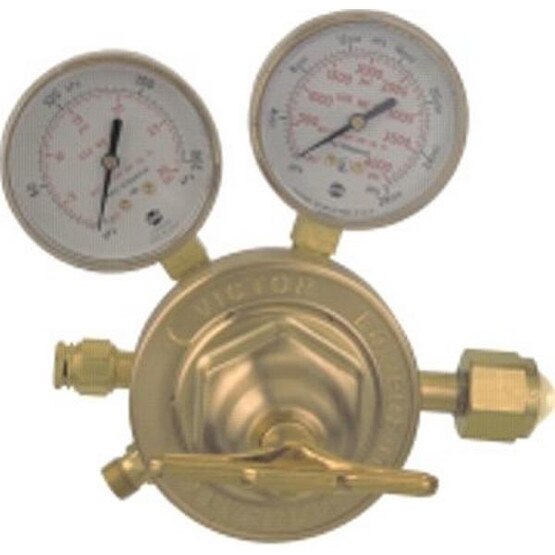

SR 450 Single Stage Heavy Duty Regulator, Oxygen, 5 psi to 125 psi Delivery, 3,000 psi Inlet - Victor 0781-0527
More v
- Body Diam: 3.5 in
- Body Material: Brass
- Connection Type: Inlet CGA-540; Outlet 9/16 in-18 LH(M)
- Diaphragm Material: Stainless Steel
- Inlet Pressure [Max]: 3,000 psi
- Gas Type: Oxygen
- Gauge Size: 2-1/2 in
- Outlet Pressure [Max]: 125 psi
- Outlet Pressure [Min]: 5 psi
- Inlet Connection: CGA-540
- Outlet Connection: 9/16 in-18 LH(M)
- Outlet Size: 9/16 in
- Outlet Type: Left Hand Thread
- Thread - TPI or Pitch: 18
- Type: Single-Stage Gas Regulator
