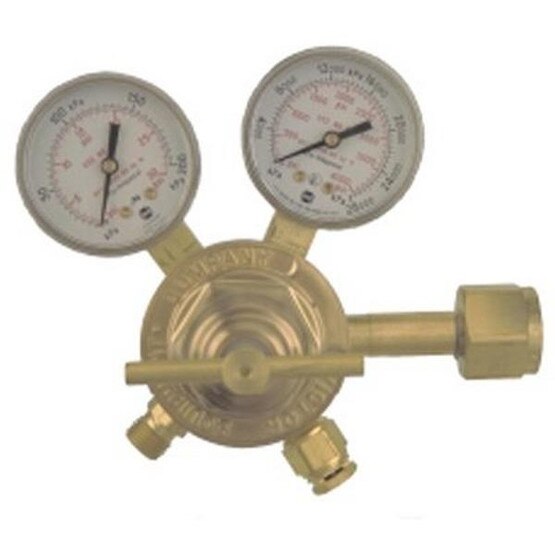

SR 250 Series Single Stage Med Duty Regulators, Inert Gas, CGA 540, 3,000 psig - Victor 0781-0043
- Compact single stage construction
- Delrin® cap bushing
- Delrin® cap bushing for smooth adjustments
- Delrin® cap bushing for smooth adjustments
- External self reseating relief valve not designed to protect downstream apparatus
- Stem type seat mechanism
- Stem type seat mechanism
- Stem type seat mechanism
More v
- Body Material: Forged Brass
- Depth [Nom]: 4 1/4 in
- Diaphragm Material: Fabric-Reinforced Neoprene
- Diaphragm Size: 1 3/4 in
- Height [Nom]: 5 1/8 in
- Inlet Pressure [Max]: 3,000 psig
- Filter Material: Bronze; Sintered
- Gas Type: Air; Oxygen; Inert Gas
- Gauge Size: 2 in
- Outlet Pressure [Max]: 125 psig
- Outlet Pressure [Min]: 5 psig
- Inlet Connection: CGA 540
- Width [Nom]: 6 3/8 in
- Outlet Connection: 9/16 in - 18 (M)
- Wt.: 2 15/16 lb
