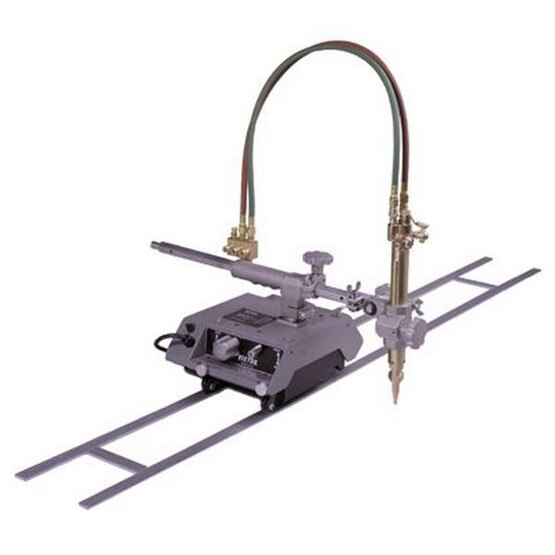

VCM Portable Cutting Machines, 10" Rack/Barrel, 72";4 to 96" Dia. Cut Capacity - Victor 0200-0220
- Cone disc drive
- Constant speed AC induction motor located on the side opposite the torch for cooler, more efficient operation
- Counter-balanced design allows torch racking distance up to 18" from the machine
- Dual drive controls & direct speed readout
- Large thumb screws for hand tight adjustments
- Speed constant over wide range of temperatures
- Torch holder designed for 1-3/8"/35mm barrel diameter torches
More v
- Barrel Length [Min]: 10 in
- Applications: Plasma
- Barrel Diam [Nom]: 1.38 in
- Barrel Length [Nom]: 10 in
- Cutting Cap. [Nom]: Length Increments of 72 in; Circle Diameters 4 to 96 in
- Cutting Cap. 2: Length Increments of 72 in; Circle Diameters 4 to 96 in
- Includes: Three-hose Manifold Block; 32 Pitch Pinion Torch Holder
- Speed Range [Max]: 60 in/min
- Speed Range [Min]: 1 in/min
- Uses Cutting Tip: MT 210A
- Wt.: 47 lb
