Vestil ZLTT-5252-4-36 Remote Ergonomic Zero Lift & Tilt Table
- 45 maximum tilt angle positions loads to optimum ergonomic positions
- Lift and tilt options are controlled separately allowing a precise working angle for the employee
- No pit mounting required makes installation quick and easy
- Products may be loaded and unloaded by a standard hand pallet truck when fork trucks aren't available
More v

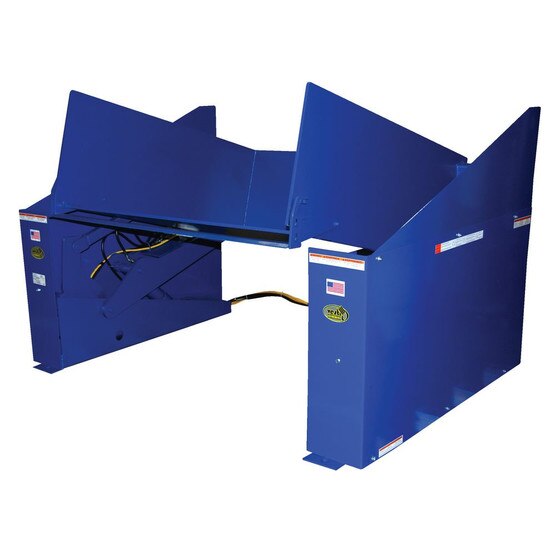

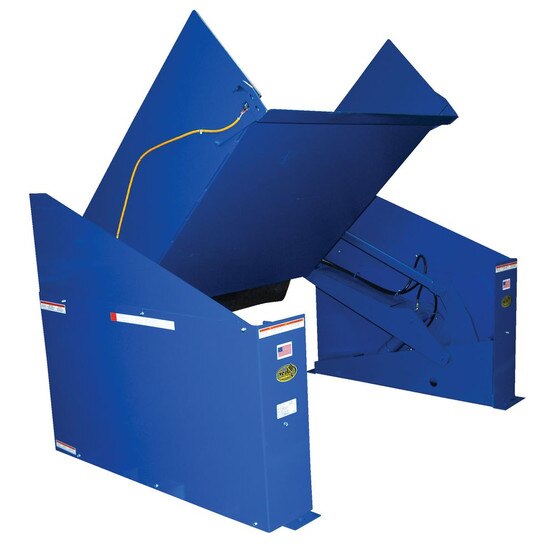

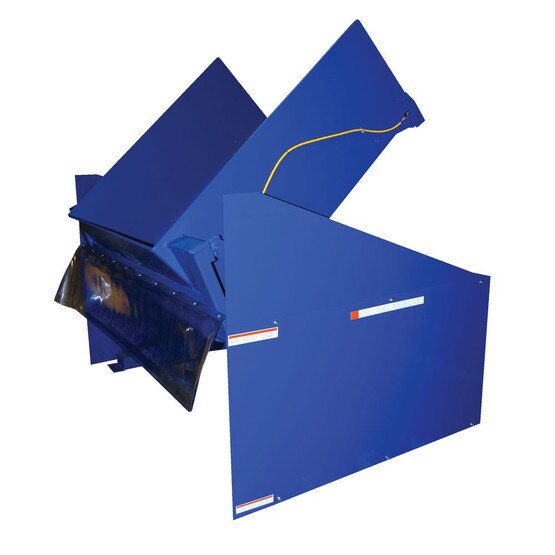

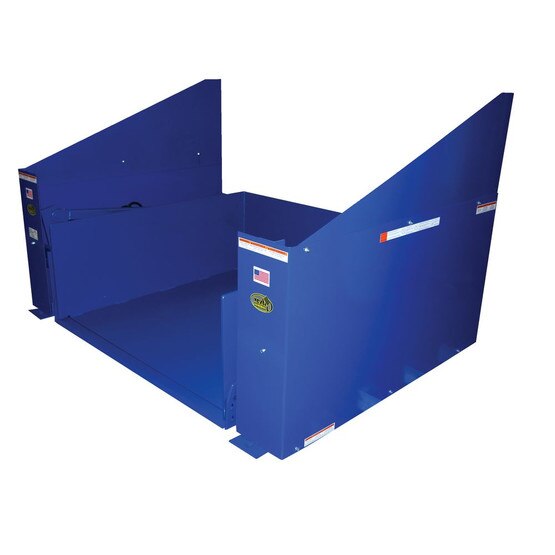

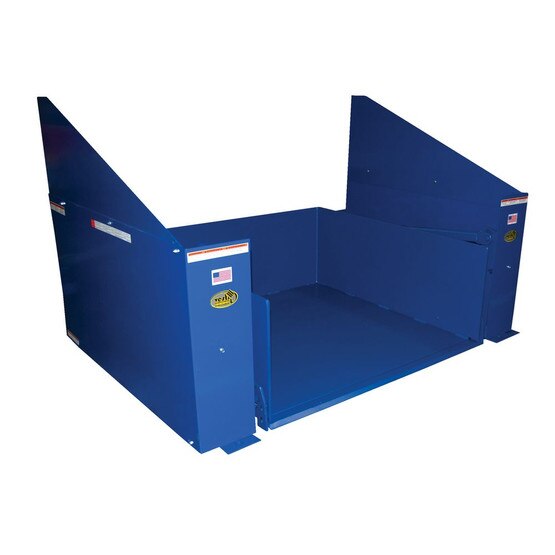

- The Zero Lift & Tilt Table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Lift and tilt is controlled separately. Remote Power unit with hand-held control is standard.
- Uniform Capacity (lbs.): 4000
- Raised Height (in.): 36
- Platform Width (in.): 52
- Platform Length (in.): 52
- Maximum Tilt Angle (Degrees): 45
- Voltage/Phase: 460/3
- Horsepower: 2
- Product Length (in.): 59.75
- Product Width (in.): 76.75
- Product Height (in.): 24
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Please click on the desired file to open it in another browser tab. If you'd like to download the document, you can do that from your browser controls.
1 year
