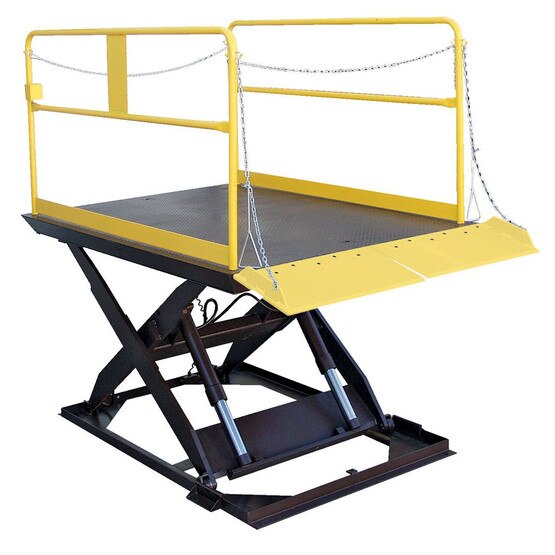

Vestil WL-100-8-88 Premium Truck Scissor Dock Lift

Part# VES-WL-100-8-88
$12,321.00
Ships Within 3 Weeks
Ships by Truck
  • Save time and reduce man-hours where there are no docks with a Truck Scissor Dock Lift. The pit or surface mount has an optional approach ramp. Engineered and designed for maximum safety and efficiency. The checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The AC push-button control is on a long coil cord. Pre-wired control box includes magnetic starter and overload fuse. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. The external motor can be located up to eight (8) feet away from lift.
  • Platform Length (in.): 96
  • Platform Width (in.): 96
  • Lowered Height (in.): 10
  • Raised Height (in.): 70
  • Uniform Capacity (lbs.): 8000
  • Overall Frame Width (in.): 86
  • Overall Frame Length (in.): 93
  • AC Push Button Voltage: 24
  • Push Button Cord Length (feet): 20
  • External Motor Horsepower: 6.5
  • External Motor Voltage/Phase: 460/3
  • Motor Hertz: 60
  • Motor Weight (lbs.): 300
  • Axle Side Load Capacity (lbs.): 5500
  • Axle End Load Capacity (lbs.): 6750
  • Product Length (in.): 114
  • Product Width (in.): 96
  • Product Height (in.): 55
