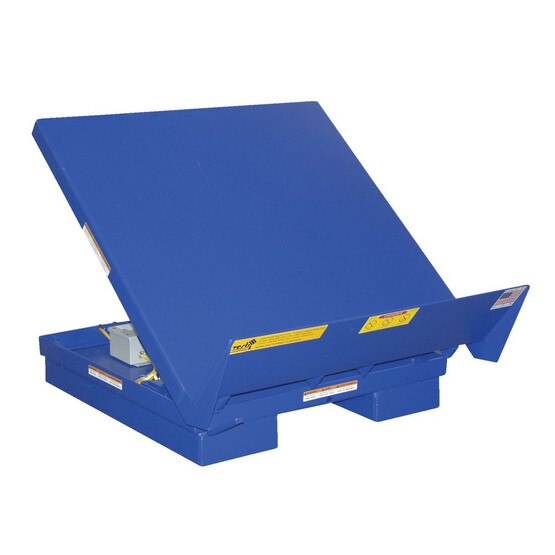

Vestil UNI-P-4848-4 Portable Lift & Tilt Workstation Table
- Ergonomic design reduces fatigue and back injuries increasing productivity
- Welded steel construction provides long lasting rugged use
- 45 tilt angle offers better ergonomics and operator comfort
- Platform end lip safely supports containers when tilted
More v
- The Portable Uni-Tilt can transport your tilter from workstation to workstation quickly and easily with a fork truck. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. The platform has a high lip the tilt side and a selector pedal that allows the operator to lift while tilting or tilt then lift. The unit has a hand pendant control standard and optional voltages available.
- Uniform Capacity (lbs.): 4000
- Platform Width (in.): 48
- Platform Length (in.): 48
- Level Height (in.): 12
- Maximum Tilt Degree: 40
- Power Unit: Internal
- Lip Height (in.): 12
- Motor Horsepower: 2
- Voltage: 208-230/460
- Phase: 3 AC
- Color: Blue
- Product Length (in.): 51.75
- Product Width (in.): 48
- Product Height (in.): 24
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Please click on the desired file to open it in another browser tab. If you'd like to download the document, you can do that from your browser controls.
1 year
