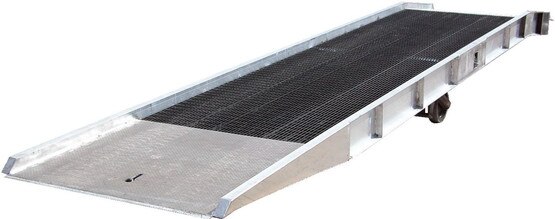

Vestil SY-308436-L Aluminum Yard Ramp With Steel Grating

Part# VES-SY-308436-L
$23,164.00
On Order. Call Now.
Ships by Truck
  • The portable Aluminum Yard Ramp with Steel Grating has a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. It includes a safety pressure relief valve, anchor chains, and a fork tow bar loop.
  • Uniform Capacity (lbs.): 30000
  • Usable Width (in.): 78

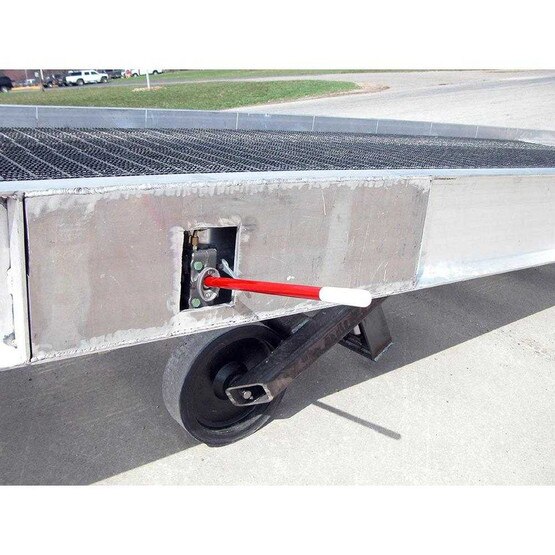

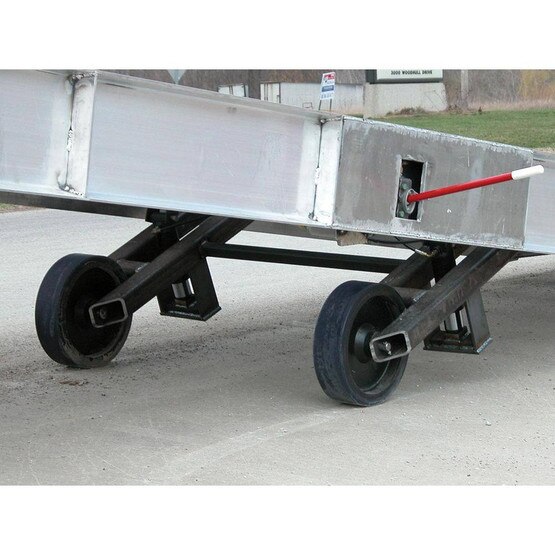

  • Hydraulic Lift: Hand Pump
  • Tire Size (in.): 18
  • Tire Thickness (in.): 5
  • Curb Height (in.): 4
  • Service Range minimum (in.): 45
  • Service Range Max (in.): 62
  • Product Length (in.): 432
  • Product Width (in.): 86
  • Product Height (in.): 45
