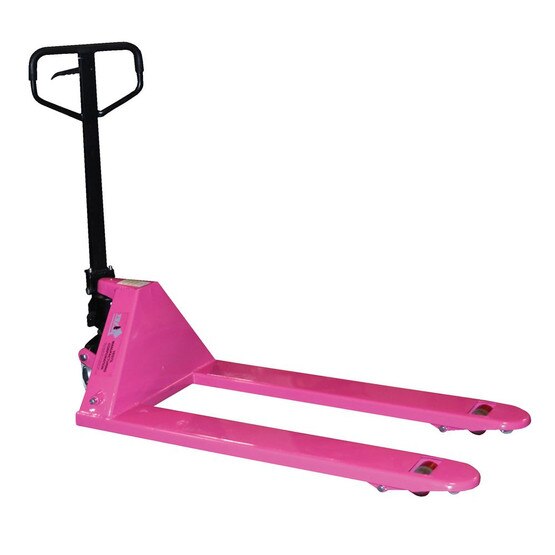

Vestil PM5-2748-QL Ergonomic Quick Lift Pallet Truck
- Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
- Steering wheels include bearing dust covers for added life
- Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
- Chrome-plated hydraulic pump piston for long seal life
More v
- The Quick Lift Pallet Truck lifts to a maximum height with just five to six (5-6) pumps. It reduces operating cost and is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. The steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. The unit is equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. The hydraulic pump design facilitates easy access seal replacement. The chrome-plated hydraulic pump piston ensures long seal life.
- Uniform Capacity (lbs.): 5500
- Overall Fork Width (in.): 27
- Overall Fork Length (in.): 48
- Service Range Minimum (in.): 3
- Service Range Maximum (in.): 7-1/2
- Individual Fork Width (in.): 7
- Wheel Type: Poly-on-Steel
- Wheel Diameter (in.): 7
- Wheel Width (in.): 2
- Poly Load Roller Diameter (in.): 3
- Poly Load Roller Width (in.): 4
- Color: Blue
- Product Length (in.): 66
- Product Width (in.): 27
- Product Height (in.): 48
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
