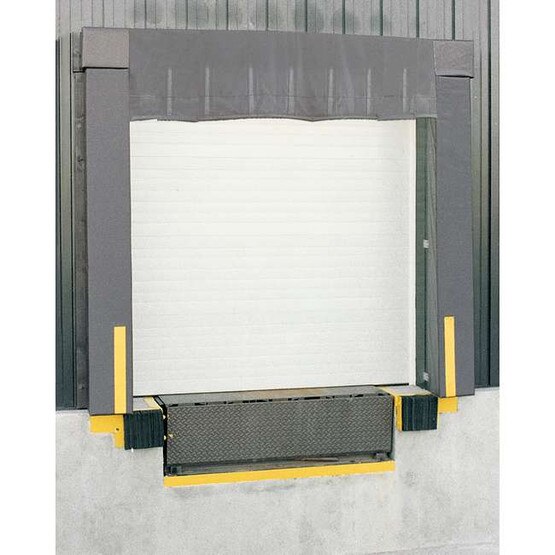

Loading Dock Seals - 20 In Projection 8 x 9 Door, Vestil
- Three foam-filled pads offer full dock protection
- Maximum compression design offers the maximum protection
- Built-in air tunnels allow air to escape when contacted by a trailer
- Mounting hardware and installation instructions make installation quick and easy
- The superior nylon reinforced vinyl facing has a higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded on a durable wolmanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction with beveled sides and a through the wall installation kit that is included. Five (5") maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete the survey sheet. This unit is non-returnable.
- Projection (in.): 20
- Nylon Reinforced Vinyl (oz.): 36
- Nylon Reinforced Guide Strips (in.): 2
- Top Pad Flap Height (in.): 12
- Side Wall Width (in.): 9-1/2
- Face Width (in.): 12
- Maximum Compression (in.): 5
- Side Height (in.): 108
- Max Door Width (in.): 96
- Max Door Height (in.): 108
- Product Length (in.): 20
- Product Width (in.): 120
- Product Height (in.): 120
