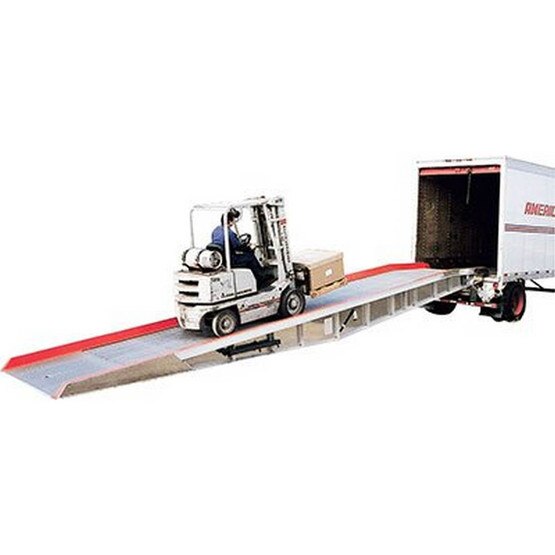

Yard Ramp - Aluminum 16,000 LB, 95w x 432l In, Vestil
- Aluminum side curbs prevent fork truck run-off
- Overlap style lip with safety chains secures ramp to trailer
- Open grating design allows snow, ice and rain to fall through
- Hand pump hydraulic lift easily adjusts to different dock heights
More v
- The portable Aluminum Yard Ramp with Aluminum Grating has a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. Grating is rust resistant aluminum. It includes a safety pressure relief valve, anchor chains, and a fork tow bar loop.
- Uniform Capacity (lbs.): 16000
- Usable Width (in.): 87
- Hydraulic Lift: Hand Pump
- Tire Size (in.): 18
- Tire Thickness (in.): 5
- Curb Height (in.): 4
- Service Range minimum (in.): 45
- Service Range Max (in.): 62
- Overlap Length (in.): 15
- Product Length (in.): 432
- Product Width (in.): 95
- Product Height (in.): 45
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Please click on the desired file to open it in another browser tab. If you'd like to download the document, you can do that from your browser controls.
1 year
