Yard Ramp - Aluminum 16,000 LB, 86w x 432l In, Vestil

Part# VES-AY-168436-L
$18,885.00
On Order. Call Now.
Ships by Truck

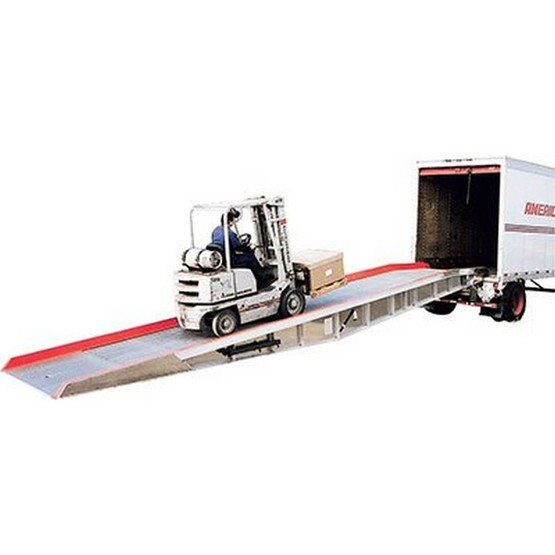

  • The portable Aluminum Yard Ramp with Aluminum Grating has a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. Grating is rust resistant aluminum. It includes a safety pressure relief valve, anchor chains, and a fork tow bar loop.
  • Uniform Capacity (lbs.): 16000
  • Usable Width (in.): 78
  • Hydraulic Lift: Hand Pump
  • Tire Size (in.): 18
  • Tire Thickness (in.): 5
  • Curb Height (in.): 4
  • Service Range minimum (in.): 45
  • Service Range Max (in.): 62
  • Overlap Length (in.): 15
  • Product Length (in.): 432
  • Product Width (in.): 86
  • Product Height (in.): 45
