Vestil AWR-G-38-10A-HR Alum Grip Walk Ramp W/rail 39.38 X 120.25

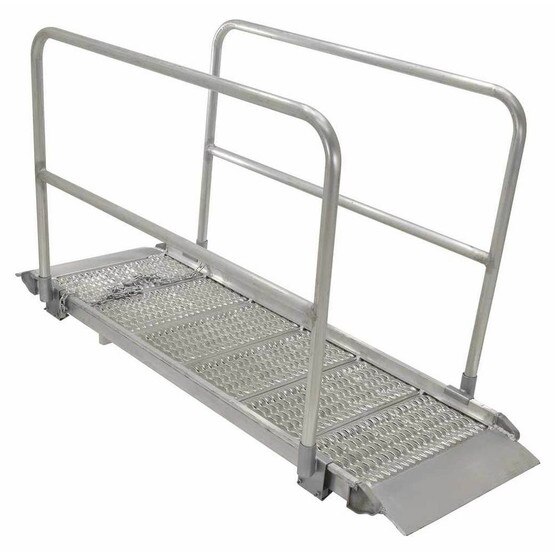

- Load and unload trucks when docks are unavailable with the Aluminum Grip-Strut Walk Ramp with hand rails. The open deck design allows snow, ice and water to fall through ramp providing a positive grip for delivery men/women, shippers and receivers. One hundred (100) percent welded aluminum construction is lightweight and will not rust. Overlap style end lip rests on the trailer bed to provide a smooth transition. Each unit includes two safety chains to connect the ramp to the trailer for safety. Not for pallet trucks or three wheel carts.
- 100% welded aluminum construction is light-weight and will not rust
- Overlap style end lip provides a smooth transition
- Safety chains securely connect ramp to trailer for safety
- Serrated ramp surface provides a non-slip grip
- Usable Width (in.): 36
- Uniform Capacity with 4-wheel cart (lb.): 2,200
- Usable Rail Length (in.): 96
- Usable Length (in.): 120-1/4
- Deck Type: Grip-Strut
- Uniform Capacity with 2-wheel cart (lb.): 1,500
- Midrail (in.): 18-7/16
- Height Range (in.): 6 to 38
- Railing Height (in.): 40-1/4
- Installation: Bolt-on
- Safety Curbs (in.): 2
- Handrail Quantity: 2
- Packaged Weight: 128 LBS
