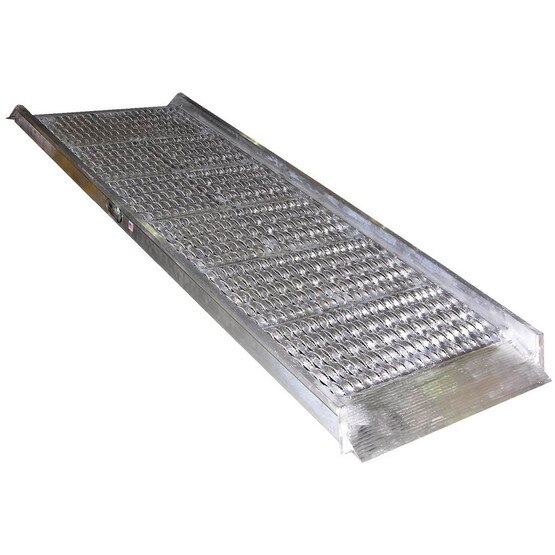

Vestil AWR-G-28-14A Aluminum Grip-strut Walk Ramp

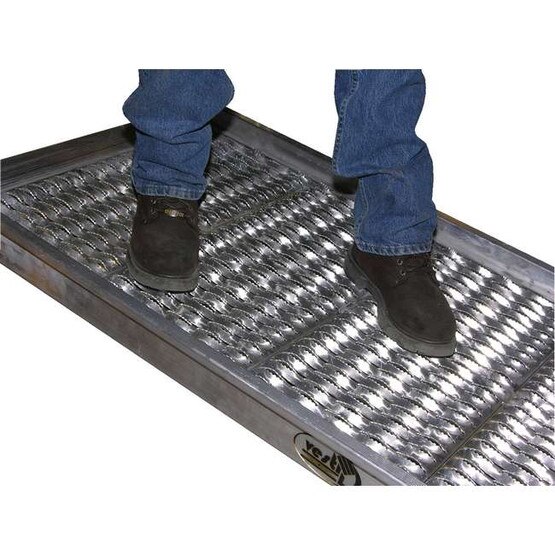

- Load and unload trucks when docks are unavailable with the Aluminum Grip-Strut Walk Ramp. The open deck design allows snow, ice and water to fall through ramp providing a positive grip for delivery men/women, shippers and receivers. One hundred (100) percent welded aluminum construction is lightweight and will not rust. Overlap style end lip rests on the trailer bed to provide a smooth transition. Each unit includes two safety chains to connect the ramp to the trailer for safety. Not for pallet trucks or three wheel carts.
- Uniform Capacity with 4-wheel cart (lbs.): 1600
- Uniform Capacity with 2-wheel cart (lbs.): 1,200
- Usable Width (in.): 26
- Height Range Minimum (in.): 6
- Height Range Max (in.): 54
- Safety Curbs (in.): 2
- Usable Width (in.): 25-3/4
- Usable Length (in.): 170
- Product Length (in.): 168
- Product Width (in.): 28
- Product Height (in.): 3.75
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
