Aluminum Walking Ramp - Overlap Style 168 x 38 In, Vestil

Part# VES-AWR-38-14A
Ships Within 1 Week
Ships by Truck
More v
Less ^

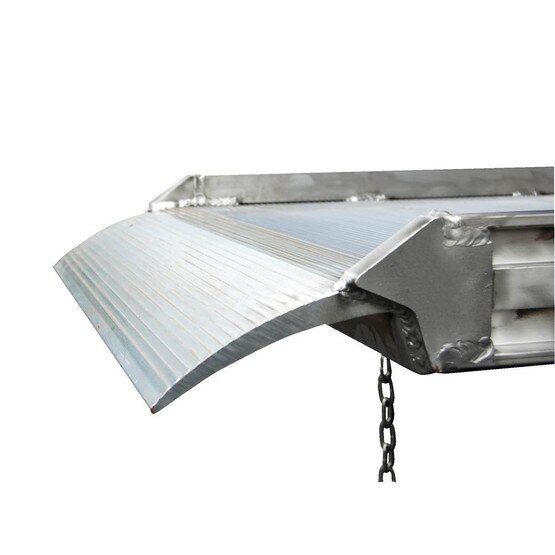

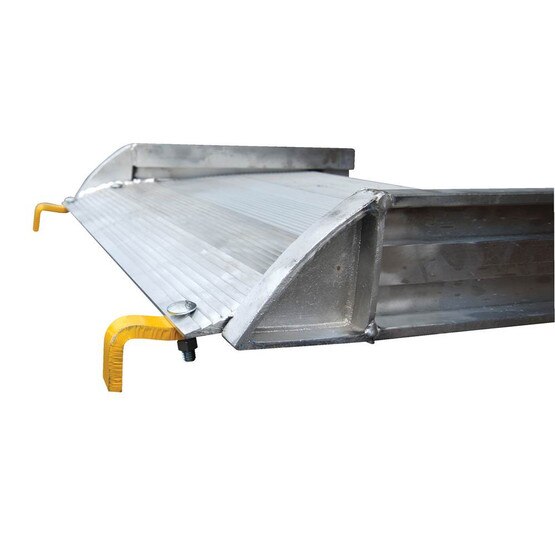

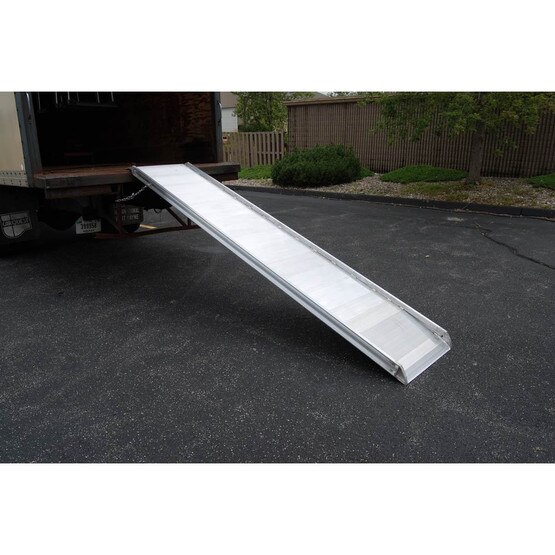

  • The Aluminum Walk Ramp enables delivery men/women, shippers, and receivers to load and unload trucks when docks are unavailable. Heavy-duty steel chains with steel grab hooks are attached to each side of ramp for safely securing ramp to truck. Constructed of strong aluminum alloy with non-skid tread surface. The ramp is lightweight and easy to handle. This overlapping style rests on the truck bed.
  • Uniform Capacity with 4-wheel cart (lbs.): 1600
  • Uniform Capacity with 2-wheel cart (lbs.): 1200
  • Usable Width (in.): 36
  • Height Range Minimum (in.): 6
  • Height Range Max (in.): 54
  • Safety Curbs (in.): 1-1/2
  • Usable Width (in.): 25-3/4
  • Usable Length (in.): 168
  • Product Length (in.): 168
  • Product Width (in.): 38
  • Product Height (in.): 5.25
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to
