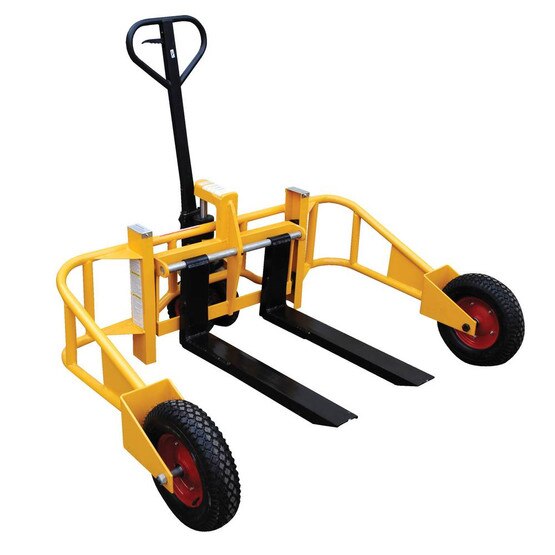

All Terrain Hopper Truck 2500 Lb - Vestil
- The All Terrain Pallet Truck is lightweight yet the strong tubular frame design handles evenly distributed loads. The large wheels allow for movement over most surfaces. Unit is great for use at construction sites, gravel pits, and nurseries. It's easy to operate with three position handle, UP, DOWN, and NEUTRAL. Unit rolls on pneumatic front tires and mold on rubber steering wheels.
- Uniform Capacity (lbs.) at 12 (in.) Horizontal Load Center: 2500
- Uniform Capacity (lbs.) at 15 (in.) Horizontal Load Center: 2,000
- Uniform Capacity (lbs.) at 24 (in.) Horizontal Load Center: 1,500
- Adjustable Fork Width Minimum (in.): 12
- Adjustable Fork With Maximum (in.): 26-3/4
- Fork Length (in.): 32
- Service Range Minimum (in.): 3
- Service Range Maximum (in.): 9
- Individual Fork Width (in.): 4-3/4
- Individual Fork Height (in.): 2
- Front Tire Diamter (in.): 22-3/8
- Back Steering Wheel Diameter (in.): 10
- Inside Straddle (in.): 50
- Outside Straddle (in.): 64
- Product Length (in.): 50
- Product Width (in.): 64
- Product Height (in.): 51
More v
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Please click on the desired file to open it in another browser tab. If you'd like to download the document, you can do that from your browser controls.
1 yr frame/90 days IM parts
