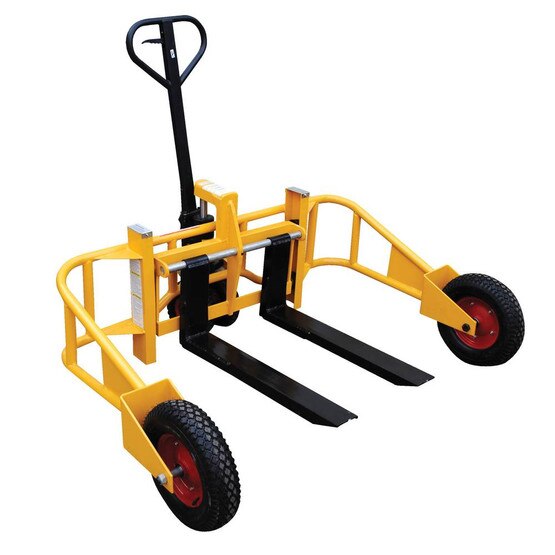

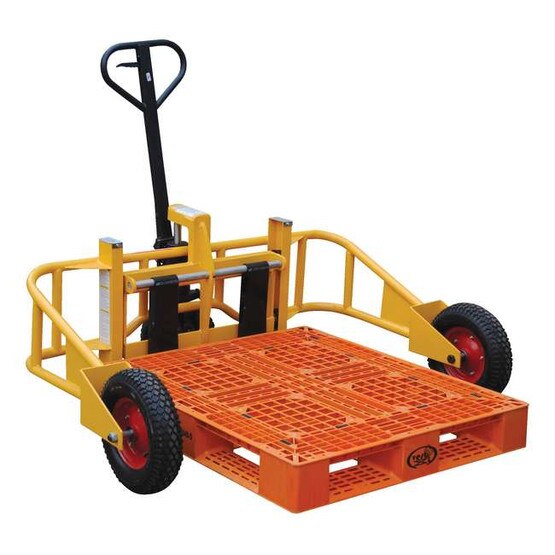

All Terrain Pallet Truck - 2,000 LB, 32 In Fork, Vestil
- Three position handle makes operation easy
- Unique design easily rolls on pneumatic tires
- Welded steel tubular frame construction provides maximum strength
- Sealed bearing wheels provide dust protection and long life
More v
- The All Terrain Pallet Truck is lightweight yet the strong tubular frame design handles evenly distributed loads. The large wheels allow for movement over most surfaces. Unit is great for use at construction sites, gravel pits, and nurseries. It's easy to operate with three position handle, UP, DOWN, and NEUTRAL. Unit rolls on pneumatic front tires and pneumatic steering wheels.
- Uniform Capacity (lbs.) at 12 (in.) Horizontal Load Center: 2000
- Uniform Capacity (lbs.) at 15 (in.) Horizontal Load Center: 1,500
- Uniform Capacity (lbs.) at 24 (in.) Horizontal Load Center: 1,000
- Adjustable Fork Width Minimum (in.): 9-1/2
- Adjustable Fork Width Maximum (in.): 26
- Fork Length (in.): 32
- Service Range Minimum (in.): 3
- Service Range Maximum (in.): 9
- Individual Fork Width (in.): 4
- Individual Fork Height (in.): 2
- Front Tire Diameter (in.): 16
- Back Steering Wheel Diameter (in.): 10
- Inside straddle (in.): 50
- Outside Straddle (in.): 64
- Minimum Width Between Forks (in.): 1-1/2
- Maximum Width Between Forks (in.): 18
- Product Length (in.): 48.125
- Product Width (in.): 65.25
- Product Height (in.): 51.5625
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Please click on the desired file to open it in another browser tab. If you'd like to download the document, you can do that from your browser controls.
1 yr frame/90 days IM parts
