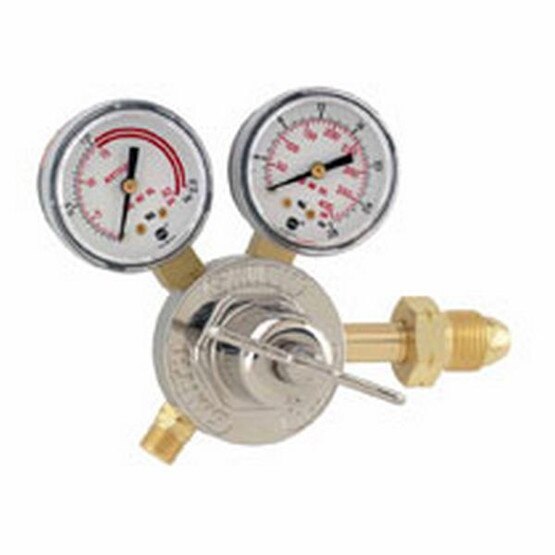

Medium-Duty Flowmeter Regulators, Acetylene, CGA 510; 400 psig inlet - Smith 30-15-510
- Contains Smith’s exclusive Sure Seat™ filtered seat technology for extended seat and regulator life
- Filtered seat prevents contamination from entering the seating area reducing repair costs and down-time
- Flow Gauge and Flowmeter Regulators
- Flow gauge regulators are for accurate measurement of gas flow
- Rugged medium-duty industrial-grade regulators are extremely durable and contain Smith’s exclusive Sure Seat™ filtered seat technology for extended seat and regulator life
- Rugged medium-duty industrial-grade regulators provide efficient and accurate regulation
- Use for shielding gas with argon or CO2 in MIG and TIG welding
More v
- Body Diam: 2 in
- Inlet Pressure [Max]: 400 psig
- Gas Type: Acetylene
- Gauge Size: 2 in
- Outlet Pressure [Max]: 150 psi
- Overall Length [Nom]: 4 3/4 in
- Inlet Connection: CGA 510; CGA510
- Outlet Connection: 9/16-18 LH B
- Packing Type: Clamshell
- Series: Series 30
- Type: Medium Duty Regulator
- Wt.: 2.86 lb
