Reed Ball Transfer Head, JTA
- Convenient adjusting screw and a hardened steel locking ring are two features that make these pipe jacks last for many years of use.
- Patented internal safety stop on the pipe jacks creates a 1 safety zone and prevents injuries to hands and fingers.
- Roller head jack models (2R) have extra wide bearing for great strength and tool life.
- Adjusting screw gives proper working height, and Reed offers both high and low jack models.
- Outer surfaces are powder painted or zinc phosphate plated to resist corrosion.
- The 1,000 lb (454 kg) capacity ball transfer attachment (JTA) with replaceable ball casters bolts to either side of V-head models.
- Note that use of the JTA head decreases the overall weight capacity of the jack.
- Ball transfer head attaches to Ridgid® and Sumner® models while all Reed heads (JTA, JH2R) and bases interchange with Sumner® and Greenlee®.
- All heads fit both high jacks and low pipe jacks.
- JLV and JL2R are designed for use with power grooving 8" - 12" pipe, using Reed's 5301PD Power Drive.::For power grooving smaller pipe up to 6", use any of the Reed pipe jacks.
More v

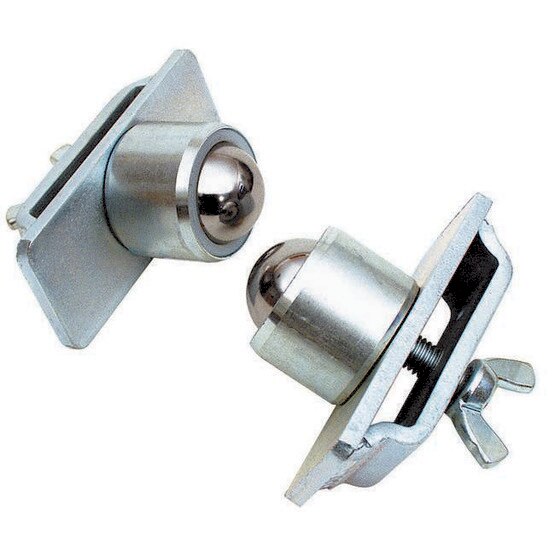

- Description : Ball Transfer Head Attachment (pair)
- WeightCapacity lbs (kg): 1000 (455)
- PipeCapacity in (mm): 3/8 - 12 (10 - 300)
