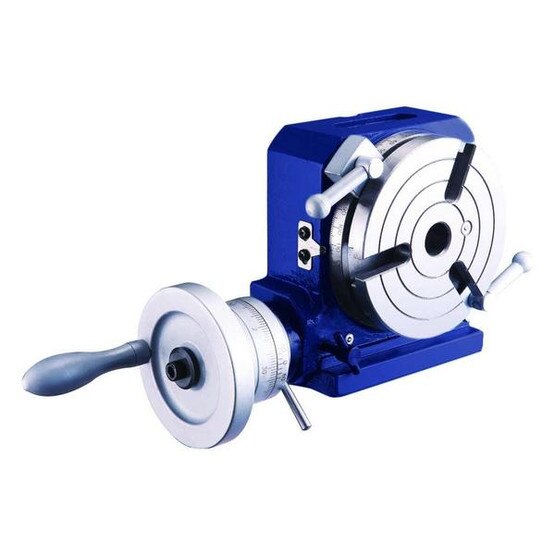

Palmgren 9634114 4" Heavy Duty Rotary Table
- Use in either the horizontal or vertical position
- Low profile dimensions
- The table top and the vertical and horizontal bases are
- ground for overall squareness
- Gear drive is immersed in oil
- Dual positive action locks
- Hardened and ground worm gear
- The work table is graduated a full 360° - One turn on the handle moves the table 4°
- The micro collar is graduated in steps of 1 minute on the dial and 10 down to 10 seconds on the vernier scale
- Flatness of clamping surface .0006" / Parallelism of clamping surface to base .0008" / Squareness of clamping surface to angle face .0008" / Squareness of clamping surface to center hole .0008"
More v
- Part Number: 9634114
- Base: 5.70" x 4.52"
- Center Hole: MT-2
- Gear Ratio: 72" to 1"
- Height at 0: 3.15"
- Max Load Horizontal: 80 lbs.
- Max. Load Vertical: 40 lbs.
- Table Diameter: 4"
- Width: 5.710"
- Warranty: Limited Lifetime
- Country of Origin: TAIWAN
