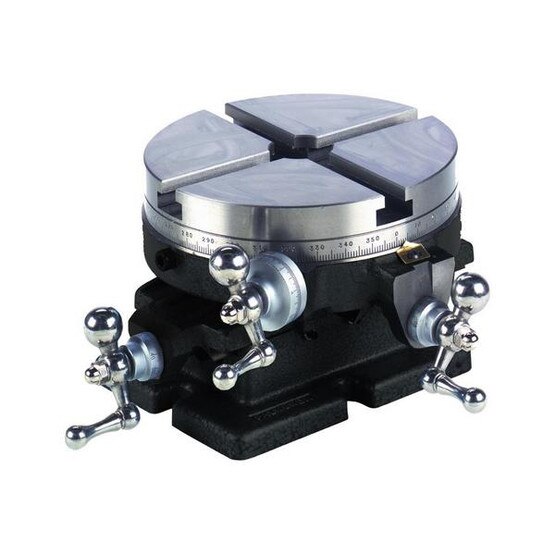

Palmgren 9632803 Rotary Cross Slide Table, 8 In
- Accurately position work on the X and Y axis, as well as 360° table rotation
- Precision ground table top to 0.001" total indicator reading
- A 5/8" keyway and mounting lugs are provided for locating and accurate, secure mounting
- Smooth worm gear drive provides positive rotary feed
- Balanced ball crank feed handles do not exceed below the base to eliminate interference with the machine table
- 4? cross slide travel
- Cross slide dials are calibrated in 0.001" increments
- Rotary dials are graduated in 3 minute increments and 1 minute increment on the vernier
More v
- Part Number: 9632803
- Base Keyway : 5/8"
- Gear Ratio: 40:01:00
- Height Overall: 5-1/2"
- Table Diameter: 8"
- Table T-slots: 5/8"
- Top Grad. : 360
- Width: 13.000"
- Warranty: Limited Lifetime
- Country of Origin: CHINA
