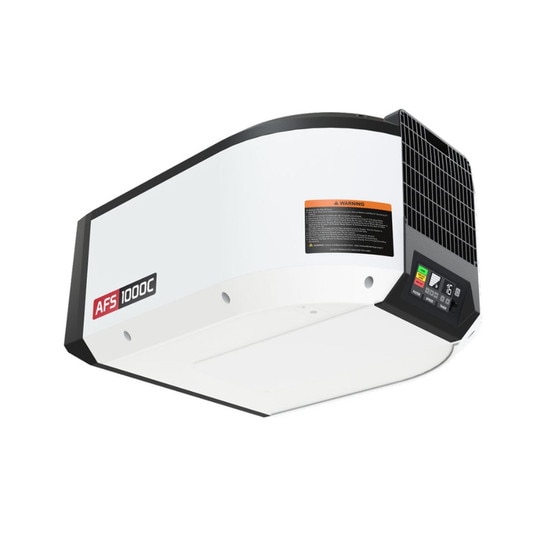

Jet Air Filtration System - 1000 CFM 1 Ph 120V - AFS-1000C
- Detects dust levels to adjust fan speed
- Filter life is monitored and displayed on tilted LED display panel
- Bright LED display shows filter life, speed, and timer settings.
- LED Display is angled for easier viewing when ceiling mounted
Timer can be set up to 16 hours. - Automatic air quality sensor adjusts the six speeds based on air quality
- Two-Filter system with air diffuser that disperses air into a broader pattern
- Captures particles down to 1 micron.
- LED notification of filter life updated by sensor
- Radio frequency remote makes adjusting speeds and setting the timer easy
- Quiet and efficient 3PH BLDC motor with a 110V 1PH power requirement
- Strong injection molded plastic dampens vibration and noise
More v
- Overall Dimensions: 30-1/8" x 24-1/4" x 15-3/8"
- Net Weight: 33 lbs.
- Motor Type: Brushless Direct Current Motor
- Motor Phase - Output: 3-Phase
- Motor Speed Range: 600-1,100 RPM
- Prewired Voltage: 120V
- Motor Phase - Input: 1-Phase
- Recommended Circuit Size: 15A
- Power Cord: SJT 18 AWG X 3C, 6'
- Power Plug: American Type NEMA (10A/125V)
- Speed Control: Six selectable speeds
- Speed Range: 450 - 1000 CFM
- Inner Filter Efficiency: 1 micron
- Outer Filter Efficiency: 5 micron
- Filter Size (W x H): 24" x 20"
- Sound Rating - Decibels: 51 - 67db @ 1 meter
- Timer Settings - Hours: 1 - 16, adjustable in 1 hour increments
- Digital Remote Control - Transmitter: Radio Frequency
- Remote Battery: CR2032.3V Button Cell
