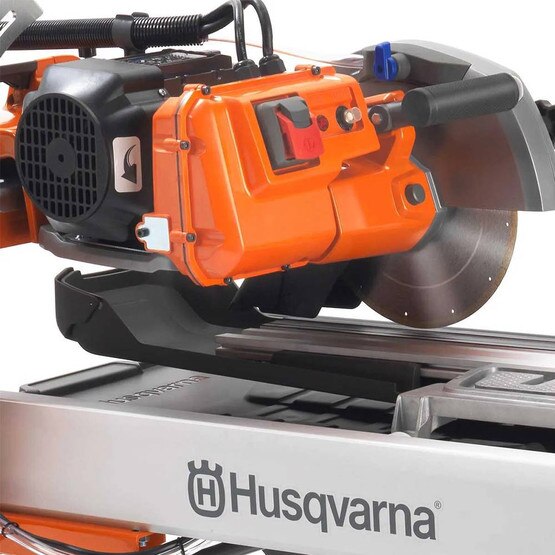

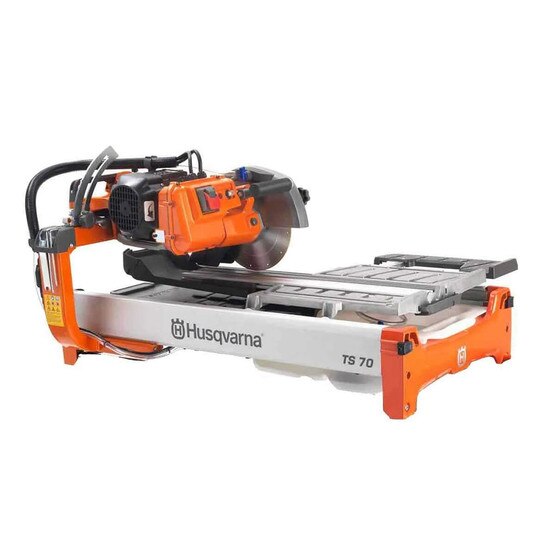

Husqvarna TS70 Tile Saw
- Includes 10" Vari-Cut Porcelain Diamond Blade
- Depth of cut 2-3/4". (70 mm)
- Features a belt driven blade shaft for a smoother cut and more torque
- Quick and easy set-up and breakdown
- Keeps water and slurry in the cart, not on the tile face like traditional saws
- Cutting capacity: 28" rip cuts and diagonal 20" x 20" in a single pass
- Water tank can easily be removed from assembly for a quick refill
- Patented Jet Stream Water Containment System keeps water and slurry within the cart
- Splash guard eliminates water spray behind saw
- Adjustable water feed flow
- Make 22.5° and 45° miter cuts by simply rotating the saw motor

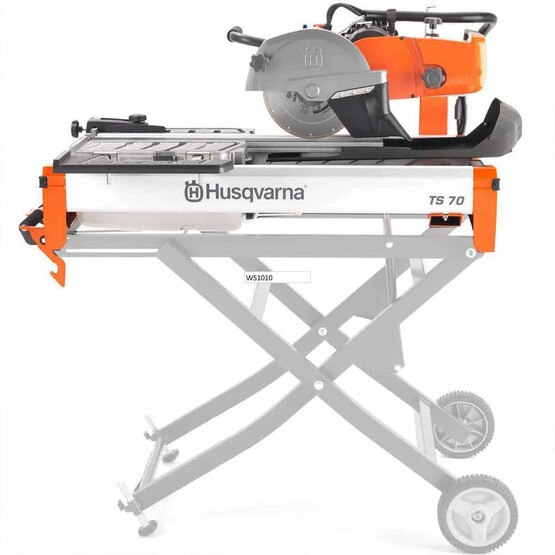

- Optional Fixed Leg Stand (579596402) and Adjustable Rolling Stand (585581602) are sold separately
More v
- Power Belt Driven Blade Shaft - 1-1/2 HP (1.1 kW)
- Voltage 120V
- Length of Cut 28 in
- Diagonal Length of Cut 24 in
- Arbor 5/8 in
- Blade Capacity 10 in
- Depth of Cut 2-3/4 in (70 mm)
- Weight 128 lbs (57.5 kg)
- Dimensions (LxWxH) 43.7 x 25.6 x 21.7 in
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
