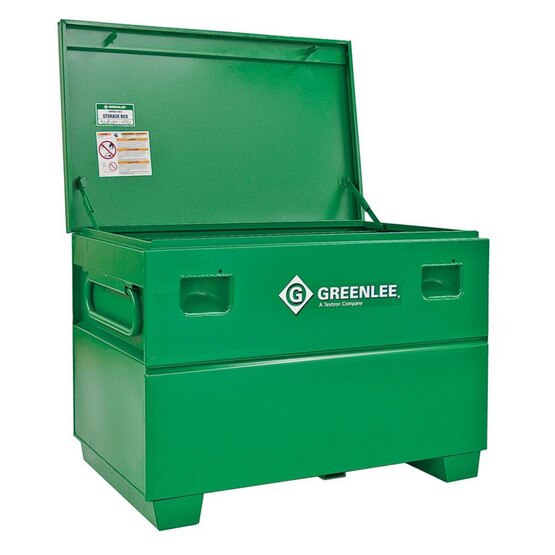

Greenlee 3048 Chests
Recessed and concealed lockprotectors for maximum security against drilling and cutting lock. (Model 1332 one lock protector only)
Jobsite box features an enhanced lid bolster for added support and durability
Finger-groove lid handle for easy opening
Convenient storage tray onback wall for small items (except Models 1332,1636 and 2142)
Steel support arm(s) to hold lid in open position
Heavy-duty piano hinges with non-removable pin
Patented, ergonomically designed fold-down recessed handles
New angled 3-1/2 IN high support skids feature threaded holes for easy caster installation
Recommend #1 and #5 Masterlock padlocks or equivalent
- Capacity: 25.000 CU-FT
- Depth: 30.000 IN
- Dimension D: 4.000 IN
- Dimension E: 45.500 IN
- Dimension F: 4.000 IN
- Dimension G: 23.500 IN
- Dimension H: 21.500 IN
- Height: 30.000 IN
- Weight: 200.000 LB (91.000 KG)
- Width: 48.000 IN
