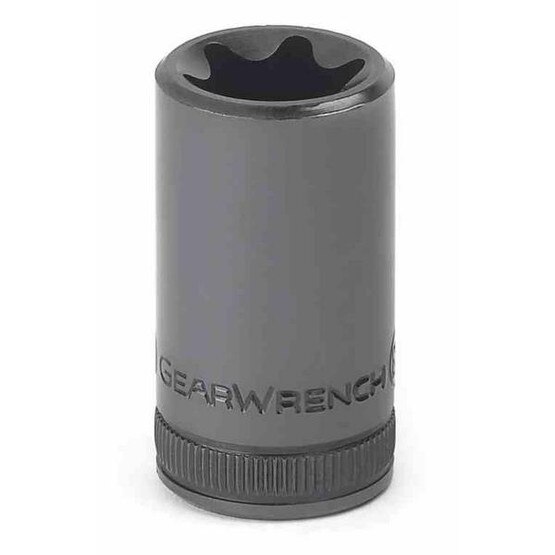

Gearwrench 80190 1/4" Drive External Torx® Sockets, E-8 | 80190
- Black Oxide Finish
More v
- Description: 1/4" Drive External TORX Sockets, E-8
- Dim. A: Drive End: 0.508 in
- Dim. B: Nose Diameter: 0.437 in
- Dim. C: Overall Length: 0.984 in
- Dim. D: Bolt Clearance: 0.15 in
- Dim. E: Bolt Depth: 0.255 in
- Dim. F: Length to Shoulder: 0.046 in
- Drive Tang Size: 1/4 in
- Drive Type: E-Torx
- Fastener Size: E8
- Finish: Black Oxide
- Length Format: Standard
- Packaging: Carded
- Product Name: Socket
- UNSPSC_V7.0901: Sockets
- UPC: 099575801907
- Weight: 0.13 lb
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
