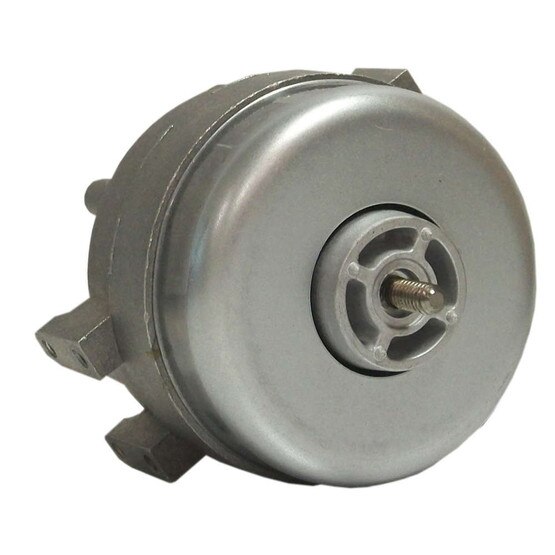

Fasco UB562 Unit Bearing Motor
- Electrical Type: Shaded Pole
- KW: 0.009
- RPM: 1550
- Frame: UNIT BEARING
- Enclosure: Totally Enclosed Air Over
- Phase: Single
- Voltage: 115
- Rotation: Clockwise Opposite Shaft End
- Overload: Thermally Protected
- Material: Aluminum
- Mounting: 2 BOSS / OSE 5 Holes
- Amperage: 0.53
- Shaft Type: Threaded
- Shaft Diameter: 1/4x20
- Bearings DE Type: Unit
- Bearings ODE Type: Unit
- Shaft Extension: .415 Refrigeration Motor|Unit Bearing|Shaded Pole|Thermally Protected|Totally Enclosed Air Over|Class B Insulation, 40°C Ambient|Bearing - Unit|1/4 x 20 Threaded Shaft?" Leads with .05" Strip|2 Mounting Feet, 5 Rear Mounting Holes
More v
- Motor Electrical Type: Shaded Pole
- RPM: 1550
- Motor Frame: UNIT BEARING
- Motor Phase: Single
- Motor Voltage: 115
- Motor Rotation: Clockwise Opposite Shaft End
