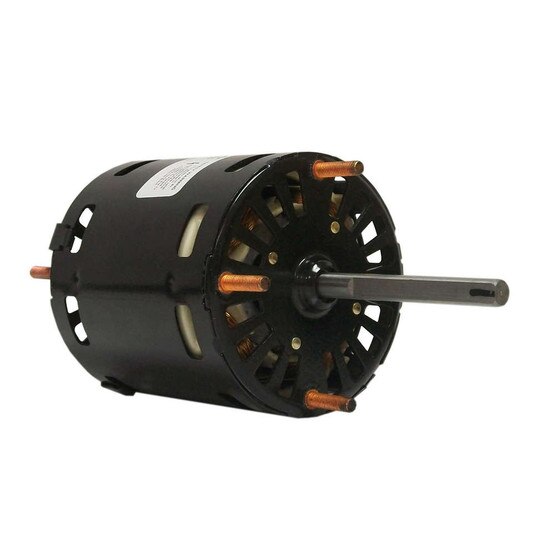

Fasco D1126 OEM Replacement Motor
- Electrical Type: Shaded Pole
- HP: 1/15
- RPM: 1550
- Diameter: 3.3"
- Enclosure: Open Air Over
- Phase: Single
- Voltage: 208-230
- Rotation: Clockwise Shaft End
- Material: Steel
- Mounting: Extended Studs
- Amperage: 1.10
- Shaft Type: Flat
- KW: 0.05
- Shaft Diameter: 0.313
- Bearings DE Type: Sleeve
- Bearings ODE Type: Sleeve
- Shaft Extension: 3.000"
- Overload: Thermally Protected OEM Direct Replacement Motor|3.3" Diameter|Shaded Pole|Thermally Protected|Open Air Over|Class B Insulation, 40°C Ambient|Sleeve Bearing|5/16" Diameter Shaft with Flat?" Leads with Molded Plug|Extended Studs Shaft End and Lead End
More v
- Motor Electrical Type: Shaded Pole
- HP: 1/15
- RPM: 1550
- Motor Diameter: 3.3"
- Motor Phase: Single
- Motor Voltage: 208-230
- Motor Rotation: Clockwise Shaft End
