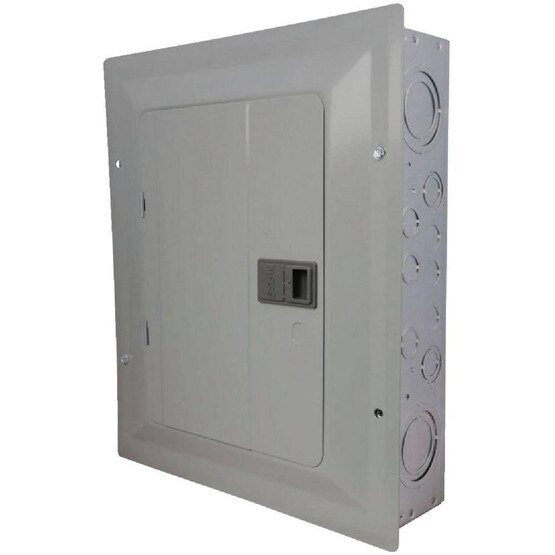

Eaton BR 125A 12-Space 24-Pole Indoor Plug-On Neutral Main Lug Load Center | BRP12L125
- Single-phase, 3-wire, plug-on neutral, main lug load center
- Suitable for indoor use only
- Includes NEMA (National Electrical Manufacturers Association) Type 3R cover.
More v
- No: BRP12L125
- pkgQty: 1
- Series: BR
- Amperage: 125
- Number Of Spaces: 12
- Max Number of Poles: 24
- Voltage: 120/240
- Enclosure Type: Indoor
- Mount Type: Bolt On
- Phase: Single
- Wire Size: #6 to 2/0
- Height (In.): 36.5
- Width (In.): 16
- Depth (In.): 4.5
- Certification: UL Listed
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
