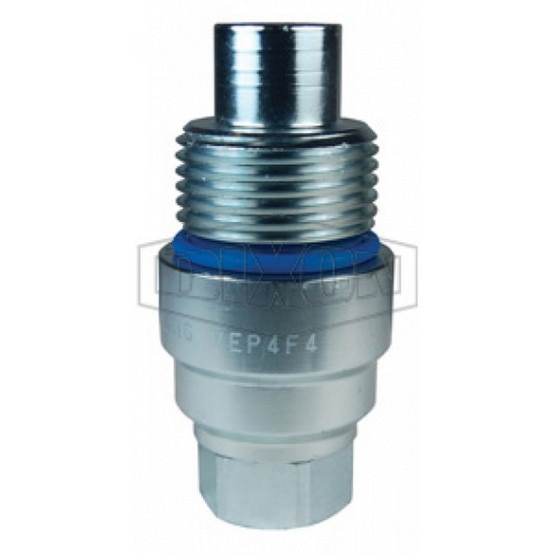

Dixon Valve VEP16OF16 2 VEP Plug | 2-1/2-12 Orb Steel
- Flow: 172.5 GPM 653 L/min)
- Hex: 89 mm
- Interchange: VEP Series Interchange
- Length: 11.08" 281.4 millimeter
- Maximum OD: 5.70" 144.8 millimeter
- Product Material: Steel
- Series: DQC VEP-Series
- Thread: Female ORB
- Thread Size: 2-1/2" 12
- Working Pressure: 4000 PSI 28 MPa
- Specifications: Maximum Impulse Pressure 5000 PSI 35 MPa)Burst Pressure Connected 18000 PSI 124 MPa)Burst Pressure Plug:14500 PSI 100 MPa)Maximum Pressure Connect amp Disconnect 3000 PSI 21 MPa)
- Features: DORS Retention System optimizes flow and impulse pressure performanceThread-to-connect design and dual valve system in the plug allow for connecting under pressure.Threaded design eliminates premature wear or brinelling commonly found with locking ball designs when subjected to high impulse pressures.
- Compatibility & Interchange Data: Compatibility amp Interchange Data Interchangeable with Stucchi VEP-P/VEP-HD Series DNP PST4/FSI Series Voswinkel FT Series Parker FET-Series and Holmbury HFT Series
- How It Works: Prior to connecting thoroughly clean all mating surfaces and threads on both halves the pull the coupler sleeve forward.To initiate the connection align the coupler and plug pushing/turning the coupler sleeve towards the plug while engaging the threads Keep the mating halves aligned during the connection process.Allow the threads to pull the coupler onto the plug do not push the coupler onto the plug.The first phase of the connection should be threaded by hand without the use of tools Please note the connection sleeve may seize when dirt and debris accumulate in the threads wipe away debris with a cloth compressed air or a brush.The second phase of the connection may require a wrench if the pressure is higher than anticipated.Continue to thread the coupler sleeve onto the plug until the end of the sleeve meets the plug body.To disconnect use a wrench to break the coupler sleeve free and keep the mating halves aligned during the disconnection process.
