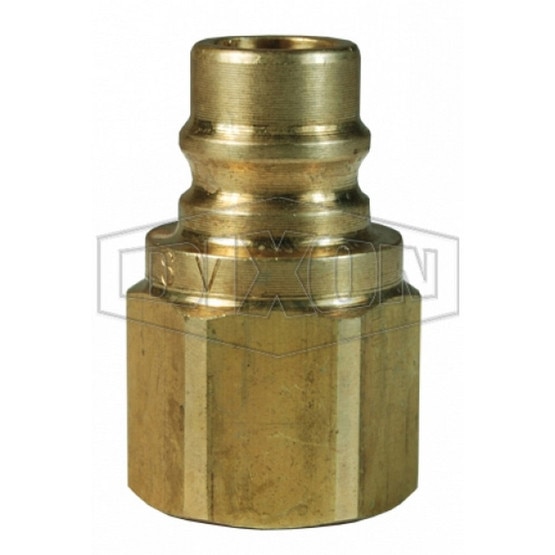

Dixon Valve V8F8-B-E 1 V Plug | 1 F-NPTF Brass | Unvalved
- Hex: 1-1/2"
- Interchange: Snap-Tite H/IH Interchange
- Length: 2.08" 52.8 millimeter
- Maximum OD: 1.65" 41.9 millimeter
- Maximum Operating Pressure: 3000 PSI (200 bar)
- Product Material: Brass
- Series: DQC V-Series
- Temperature Range: -40 to 250 Degrees F -40 to 121 Degrees C
- Thread: Female NPTF
- Thread Size: 1" 11-1/2
- Features: General purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability
- Compatibility & Interchange Data: Compatibility amp Interchange Data Interchangeable to MIL-C-51234 Snap-Tite H and Faster TNV
