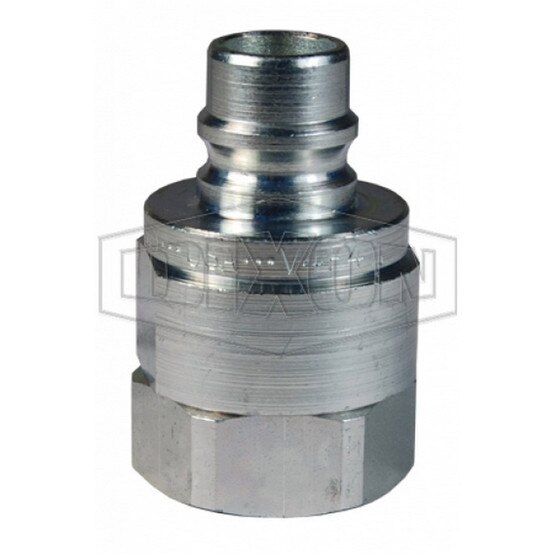

Dixon Valve V6OF6 3/4 V Plug | 1-1/6-12 Orb Steel
- Hex: 1-1/2"
- Interchange: Snap-Tite H/IH Interchange
- Length: 2.80" 71.1 millimeter
- Maximum OD: 1.65" 41.9 millimeter
- Maximum Operating Pressure: 3500 PSI (240 bar)
- Product Material: Steel
- Series: DQC V-Series
- Temperature Range: -40 to 250 Degrees F -40 to 121 Degrees C
- Thread: Female ORB
- Thread Size: 1-1/16" 12
- Features: General purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability
- Compatibility & Interchange Data: Compatibility amp Interchange Data Interchangeable to MIL-C-51234Snap-Tite H and Faster TNV
