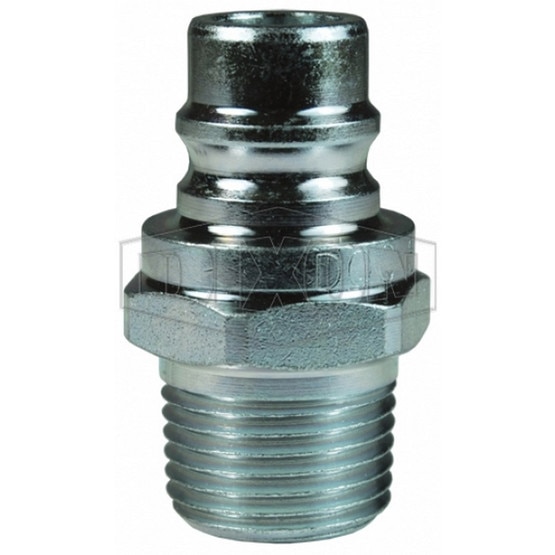

Dixon Valve V10M10-E 1-1/4 V Plug | 1-1/4 Mf-NPTF Steel | Unvalved
- Hex: 1-7/8"
- Interchange: Snap-Tite H/IH Interchange
- Length: 2.14" 54.4 millimeter
- Maximum OD: 2.06" 52.3 millimeter
- Maximum Operating Pressure: 5000 PSI (345 bar)
- Product Material: Steel
- Series: DQC V-Series
- Temperature Range: -40 to 250 Degrees F -40 to 121 Degrees C
- Thread: Male NPTF
- Thread Size: 1-1/4" 11-1/2
- Features: General purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability
- Compatibility & Interchange Data: Compatibility amp Interchange Data Interchangeable to MIL-C-51234Snap-Tite H and Faster TNV
