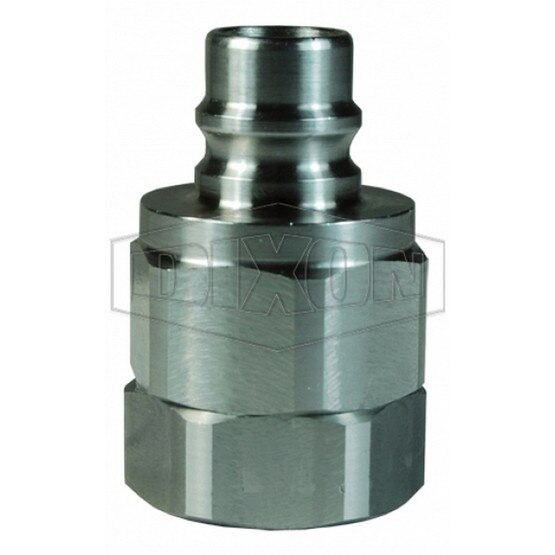

Dixon Valve V10BF10-SS 1-1/4 V Plug | 1-1/4 BSPP 316SS
- Hex: 2"
- Interchange: Snap-Tite H/IH Interchange
- Length: 3.41" 86.6 millimeter
- Maximum OD: 2.19" 55.6 millimeter
- Maximum Operating Pressure: 1500 PSI (100 bar)
- Product Material: 316 Stainless Steel
- Series: DQC V-Series
- Temperature Range: -40 to 250 Degrees F -40 to 121 Degrees C
- Thread: Female BSPP
- Thread Size: 1-1/4" 11
- Features: General purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability
- Compatibility & Interchange Data: Compatibility amp Interchange Data Interchangeable to MIL-C-51234Snap-Tite H and Faster TNV
