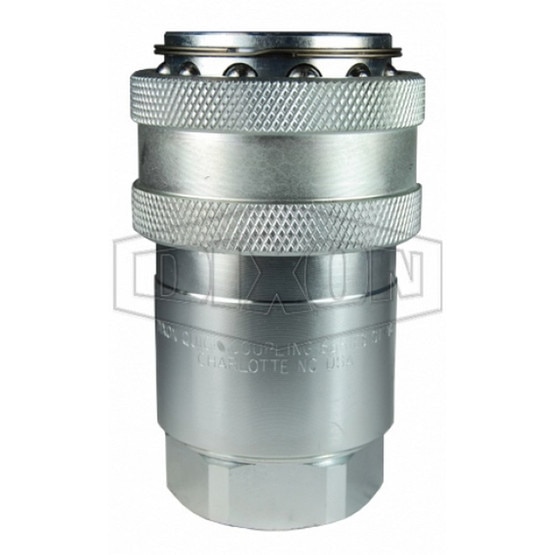

Dixon Valve 8STF8-V2 1 St Coup | 1 F-NPTF Steel | Old Style
- Hex: 2"
- Interchange: Snap-Tite 71 Interchange
- Length: 4.55" 115.6 millimeter
- Maximum OD: 2.74" 69.6 millimeter
- Maximum Operating Pressure: 8500 PSI (585 bar)
- Product Material: Steel
- Series: DQC ST-Series
- Temperature Range: -40 to 250 Degrees F -40 to 121 Degrees C
- Thread: Female NPTF
- Thread Size: 1" 11-1/2
- Compatibility & Interchange Data: Compatibility amp Interchange Data Interchangeable with Snap-Tite 71-Series
