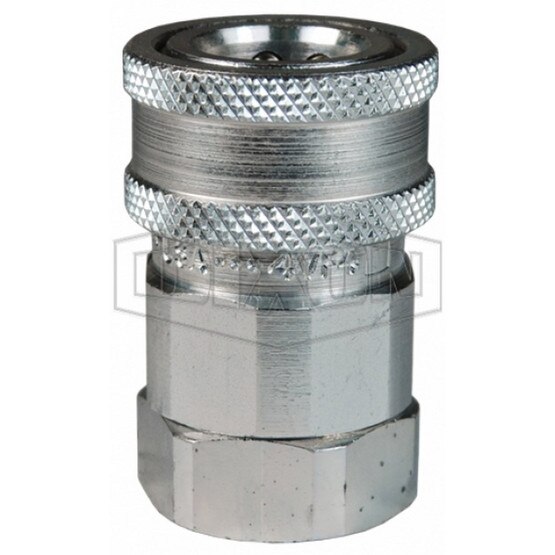

Dixon Valve 2VOF2 1/4 V Coup | 7/16-20 Orb Steel
- Hex: 7/8"
- Interchange: Snap-Tite H/IH Interchange
- Length: 1.81" 46.0 millimeter
- Maximum OD: 0.99" 25.1 millimeter
- Maximum Operating Pressure: 6500 PSI (450 bar)
- Product Material: Steel
- Series: DQC V-Series
- Temperature Range: -40 to 250 Degrees F -40 to 121 Degrees C
- Thread: Female ORB
- Thread Size: 7/16" 20
- Features: General purpose hydraulic quick-connect provides superior flow characteristics for a variety of applications
- Compatibility & Interchange Data: Compatibility amp Interchange Data Interchangeable to MIL-C-51234Interchangeable with Snap-Tite H/IH Series and Faster TNV
