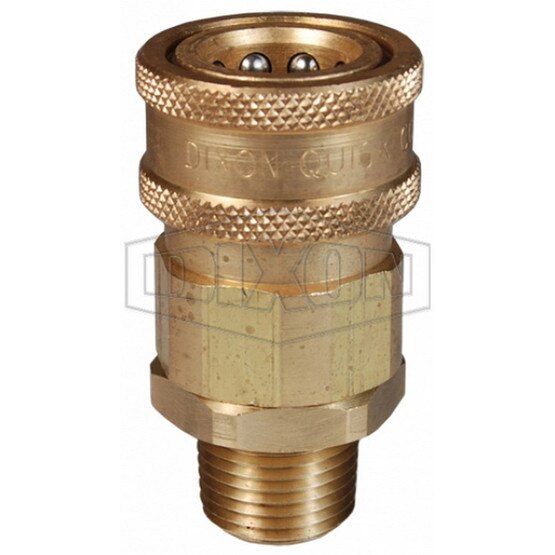

Dixon Valve 2VM2-B 1/4 V Coup | 1/4 M-NPTF Brass
- Hex: 7/8"
- Interchange: Snap-Tite H/IH Interchange
- Length: 2.12" 53.8 millimeter
- Maximum OD: 0.99" 25.1 millimeter
- Maximum Operating Pressure: 2250 PSI (150 bar)
- Product Material: Brass
- Series: DQC V-Series
- Temperature Range: -40 to 250 Degrees F -40 to 121 Degrees C
- Thread: Male NPTF
- Thread Size: 1/4" 18
- Features: General purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability
- Compatibility & Interchange Data: Compatibility amp Interchange Data Interchangeable to MIL-C-51234Snap-Tite H and Faster TNV
