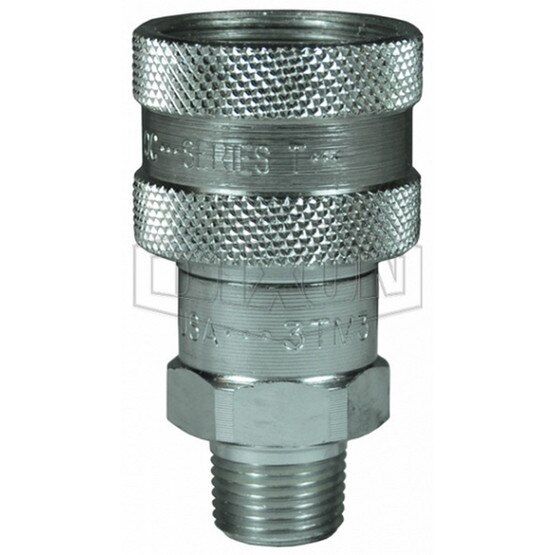

Dixon Valve 2TM2 1/4 10k Threaded Coup | 1/4 M-NPTF Steel
- Applications : Designed for high pressure applications including hydraulic rams and pumps where low flow and pressures up to 10,000 PSI are encountered. Hydraulic tools jacks hand pumps fire rescue tools crimping bolting and power units.
- Hex: 13/16"
- Interchange: Enerpac Interchange
- Length: 2.16" 54.9 millimeter
- Maximum OD: 1.13" 28.6 millimeter
- Maximum Operating Pressure: 10000 PSI (700 bar)
- Pipe Thread: NPT / NPTF
- Product Material: Steel
- Series: DQC T-Series
- Temperature Range: -40 to 250 Degrees F -40 to 121 Degrees C
- Thread: Male NPTF
- Thread Size: 1/4" 18
- Compatibility & Interchange Data: Compatibility amp Interchange Data High Pressure Screw-Together InterchangeParker 3000-SeriesEnerpac C604Interchangeable to ISO 14540
