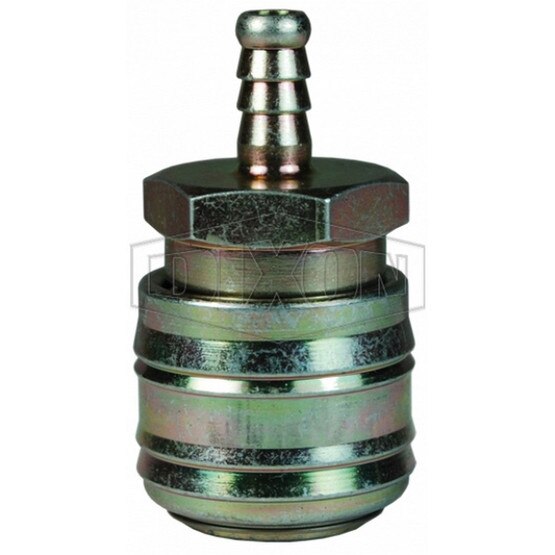

Dixon Valve 2MS3-PL 1/4 Aro Coup | 3/8 Barb Steel/Brass
- Hex: 13/16"
- Hose ID: 3/8"
- Interchange: ARO Interchange
- Length: 2.50"
- Maximum OD: 1.06"
- Pressure Rating: See Product Details
- Product Material: Nickel Plated Brass Body, Steel Sleeve
- Series: DQC M-Series
- Temperature Range: -40 to 250 Degrees F -40 to 121 Degrees C
- Safety Notes: Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination Consult hose manufacturer's catalog for hose end connection ratings If in doubt test under controlled conditions for suitability to application.Dixon cannot assume liability for misapplication of production resulting in equipment down-time lost production and/or personal injury including death.It is important to be safe when installing quick disconnect couplings into a pneumatic circuit Never install a pneumatic coupling directly into an air tool use a piece of hose that is at least 18 long between the tool and the coupling to prevent damage to the coupling To protect the operator safety devices such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
- Specifications: Rated pressure for connected Steel Coupler amp Steel Plug 300 PSI 20 bar Maximum Working and 2,600 PSI 179 bar BurstRated pressure for connected Steel Coupler amp Brass Plug 300 PSI 20 bar Maximum Working and 5,000 PSI 345 bar Burst
- Compatibility & Interchange Data: Compatibility amp Interchange Data ARO 210Hansen 210/310
