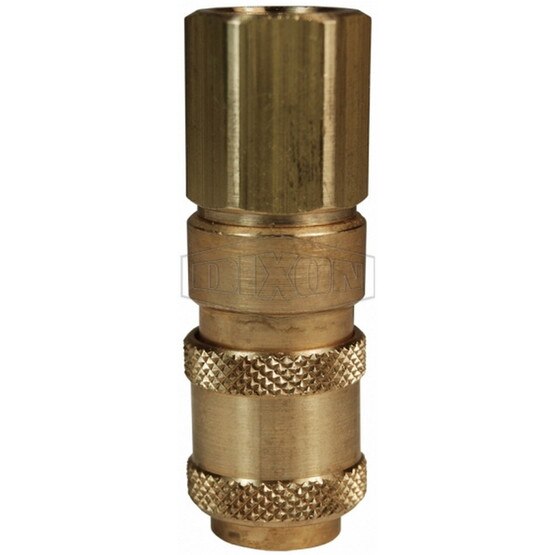

Dixon Valve 2AF1-B 1/4 Compact Coup | 1/8 F-NPTF Brass
- Applications : A series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired.
- Hex: 1/2"
- Interchange: A Series
- Length: 2.41"
- Maximum OD: 0.77"
- Pipe Thread: NPT / NPTF
- Pressure Rating: See Product Details
- Product Material: Brass
- Series: DQC A-Series
- Thread: NPTF
- Thread Size: 1/8"
- Safety Notes: Pressure rating given at ambient temperature 70 F 21 C
- Specifications: Rated pressure for connected Brass Coupler amp Brass Plug 500 PSI 35 bar Maximum Working and 6,500 PSI 450 bar BurstRated pressure for connected Brass Coupler amp Steel Plug 1,000 PSI 70 bar Maximum Working and 8,000 PSI 550 bar Burst
- Compatibility & Interchange Data: Compatibility amp Interchange Data Proprietary Astronautics
