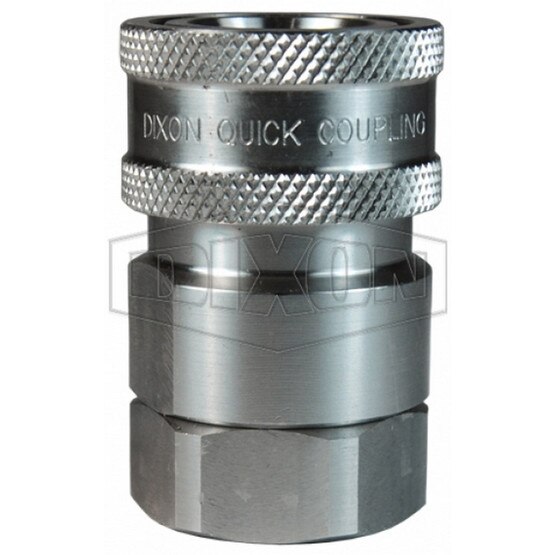

Dixon Valve 16VBF16-SS 2 V Coup | 2 BSPP 316SS
- Hex: 3-1/2"
- Interchange: Snap-Tite H/IH Interchange
- Length: 3.92" 99.6 millimeter
- Maximum OD: 3.83" 97.3 millimeter
- Maximum Operating Pressure: 500 PSI (34 bar)
- Product Material: 316 Stainless Steel
- Series: DQC V-Series
- Temperature Range: -40 to 250 Degrees F -40 to 121 Degrees C
- Thread: Female BSPP
- Thread Size: 2" 11
- Features: General purpose hydraulic quick-connect provides superior flow characteristics for a variety of applications
- Compatibility & Interchange Data: Compatibility amp Interchange Data Interchangeable to MIL-C-51234Interchangeable with Snap-Tite H/IH Series and Faster TNV
