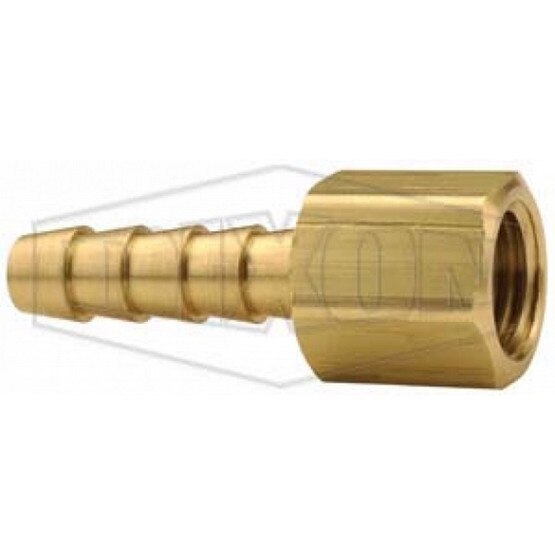

Dixon Valve 1430814K 1/2" Hose X 7/8-14fem 45 Deg Sae/37 Deg JIC Swivel Brass
- Female Thread: UNF
- Female Thread Size: 7/8"-14
- Hex: 1-1/16"
- Hose ID: 1/2"
- Pipe Thread: 45 Degrees SAE / 37 Degrees JIC
- Product Material: Brass
- Shape: Straight
- Tube OD: 5/8"
- Product Detail: All standard hose fittings are intended for use with hose clamps or crimped ferrules.
- Specifications: Stem Length 1.34"Nut Length 84"Number of Barbs 4Barb Length 97"
