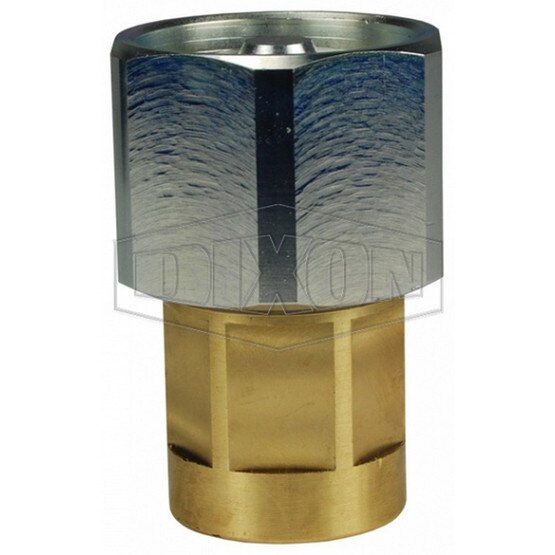

Dixon Valve 12WF12-B-HN 1-1/2 Wingstyle Coup | 1-1/2 F-NPTF Brass | Hex Nut
- Applications : Designed for applications requiring a coupling that can be connected under residual pressure with minimum spillage and air inclusion. Widely used on dump trailer wet-line hydraulic systems and oil field equipment. Not recommended for continuous hydraulic impulse applications.
- Flow: DELTA P=32 PSI 110 GPM
- Hex: 2-7/64"
- Interchange: Aeroquip 5100 Interchange
- Length: 3.67" 93.2 mm)
- Maximum OD: 3.01" 76.5 mm)
- Maximum Operating Pressure: 2,500 PSI (172 bar)
- Product Material: Brass
- Seal: Nitrile Rubber
- Series: DQC W-Series
- Temperature Range: -40 to 250 Degrees F -40 to 121 Degrees C
- Thread: Female NPTF
- Thread Size: 1-1/2" 11-1/2
- Safety Notes: Although wingstyle couplings are able to connect and disconnect while under pressure it is recommended that hydraulic power supply be de-energized during connection to ensure operator safety If it is not possible to de-energize the circuit operators must be aware of their surroundings to ensure that an attachment or tool does not put them at risk once hydraulic power is applied during the connection process.W-series couplings are not recommended for continuous hydraulic impulse applications at rated pressures.
- Compatibility & Interchange Data: Compatibility amp Interchange Data Aeroquip 5100-Series Parker 6100-SeriesSnap-Tite 78-Series Faster Series-FB Safeway S51-Series
More v
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
