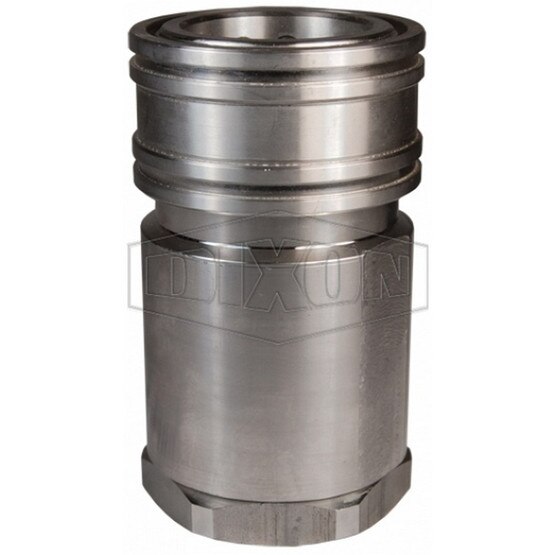

Dixon Valve 12HF12-S 1-1/2 Iso-b Coup | 1-1/2 F-NPTF 303SS
- Hex: 2-5/8"
- Interchange: ISO-B Industrial Interchange
- Length: 4.81" 122.2 millimeter
- Maximum OD: 3.00" 76.2 millimeter
- Maximum Operating Pressure: 1500 PSI (100 bar)
- Pipe Thread: NPT / NPTF
- Product Material: 303 Stainless Steel
- Series: DQC H-Series
- Temperature Range: -40 to 250 Degrees F -40 to 121 Degrees C
- Thread: Female NPTF
- Thread Size: 1-1/2" 11-1/2
- Features: Poppet style shut-off valvesDesigned to prevent fluid loss when disconnected
- Compatibility & Interchange Data: Compatibility amp Interchange Data Meets dimensional requirements of ISO 7241 Series BInterchangeable with Parker-Hannifin 60 Series Snap-Tite 72-Series Hansen HK-Series Faster Series HNV Aeroquip/Eaton FD45 Stucchi Series IRB/IRBO/IRBX
