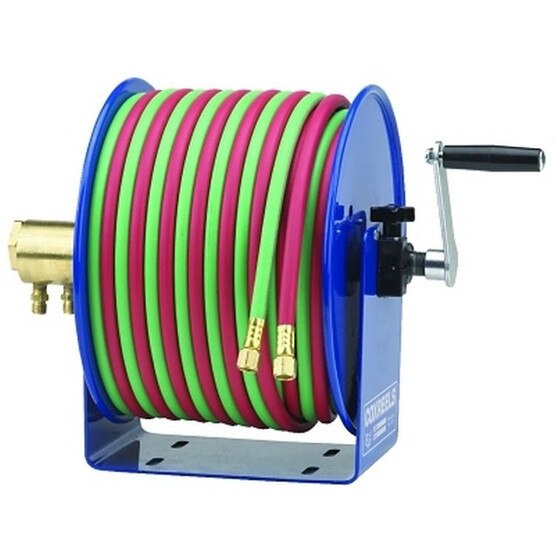

100W Series Welding Hand Crank Twin Line Hose Reel, 100 ft Hose with Fittings, Oxygen-Acetylene - Coxreels 112W-1-100

Part# 170-112W-1-100
$712.00
On Order. Call Now.
Package Shipping
Buying in Bulk? Request a QuoteSend a PO
Features
  • Compact solid one piece, heavy gauge steel U-shaped frame with open drum design
  • External 90 Deg full-flow dual ported brass swivel offering both connections from the same side of the reel
  • Durable proprietary CPC powder coat process
  • Rolled edges and ribbed discs provide strength and safety
  • Composite bearing for smooth rotation
    • More v
    Less ^
    • Bearing Type: Composite
    • Height [Nom]: 13 in
    • Hose I.D. [Nom]: 1/4 in
    • Drum Width: 9-1/2 in
    • Length [Nom]: 12 in
    • Hose Length: 100 ft
    • Hose Type: Twin Line Welding Hose; Oxygen-Acetylene
    • Includes: Hand Crank Hose Reel; Oxygen-Acetylene Twin Line Welding Hose; Welding Hose Fittings
    • Pressure [Nom]: 200 psi
    • Width [Nom]: 18-3/4 in Overall
    • Thread - TPI or Pitch: 9/16 in-18 UNF
    • Type: 100W Series Hand Crank Twin Line Welding Hose Reel with Hose
    • Country of Origin: US
