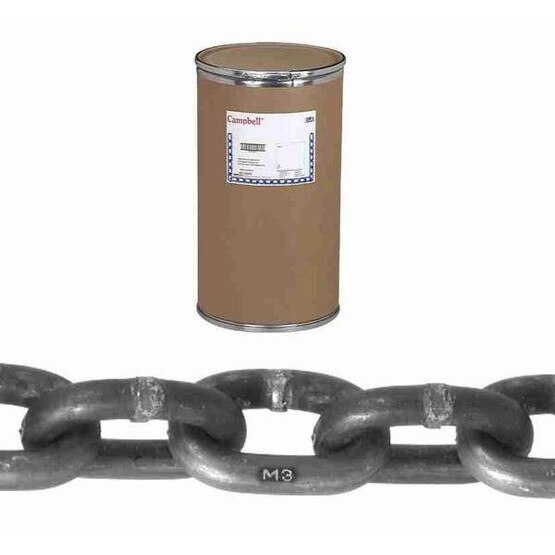

Grade 30 Proof Coin Chain - 5/16", Hot Galvanized, 550', Campbell | 120532
- Excellent Low Carbon Steel Chain for General Purpose Applications
- Frequently Used for Fabricating Tow Chains, Binding and Logging Chains, Marine and Other General Applications
- Standard Finish: Self Colored, Zinc Plated or Galvanized
- Hallmarking: "C3" and "USA" on 5/16" and Larger
- Proof Tested
- Design Factor: 4 to 1
- Packaged in Drums, Order Unit is "Feet"
- Made in the USA
- Do Not Use for Overhead Lifting
- DO NOT EXCEED THE WORKING LOAD LIMIT
More v
- Long Description: 5/16" Grade 30 Proof Coil Chain, Hot Galvanized, 550' per Drum
- Country of Origin: United States
- Headline: Grade 30, Proof Coil Chain - Drums
- Feet Per Package: 550 ft
- Finish: Galvanized
- Inside Length: 1.27 in
- Inside Width: 0.47 in
- Links Per Foot: 9.4
- Material Diameter: 0.31 in
- Packaging: Drum
- UNSPSC_V7.0901: Rope and chain and cable and wire and strap
- UPC: 020418057281
- Weight (Catalog): 0.87 lb
- Weight Per Package: 482 lb
- Working Load Limit: 1900 lb
