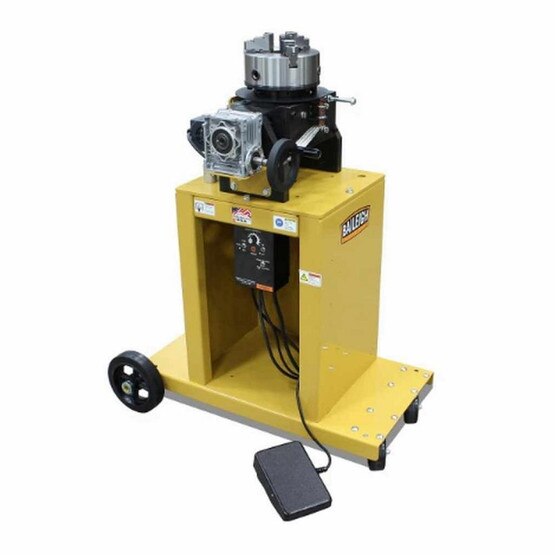

Welding Positioner - 0-6 RPM, 110 V, Baileigh
- The WP-1800 is a must for precision welding of round tubing, pipe, or solids. Unlike other positioners on the market, the this Baileigh welding positioner was designed with user comfort in mind. The rotational chuck is mounted on a portable cart and places the work piece at perfect sitting height to relieve stress and fatigue.
- The chuck operates of 110 volts of power and is variable speed. Speed can be adjusted from 0 to 6 rpm with the use of the foot pedal or possibly be locked in at a set speed from the control panel. The WP-1800 is also a self contained welding positioner that can be taken to a job site with no external grounding necessary. Just put your ground clamp on the ground peg, plug in the machine to power source and turn it on. Variable speed AC motor with foot pedal control offers hands free operation while welding, grinding, or brazing. Speed is 0-6 RPM
More v
- Country of Manufacture United States
- Speed 0 – 6 rpm (Variable)
- Thru Hole OD 2-3/8"
- Chuck Capacity 1/4" OD/10-3/4" ID
- Chuck Size Three Jaw 8"
- Maximum Current 300 Amps
- Drive Automatic / Manual
- Power 110V
- Shipping Weight 380lbs
- Shipping Dimensions (Inches) 60x44x77
