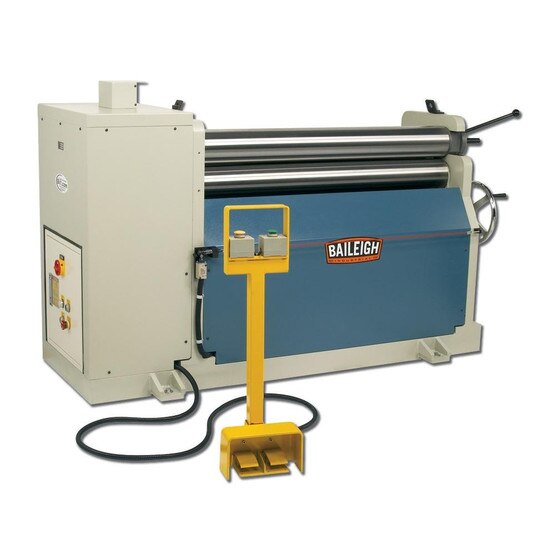

Baileigh Industrial Pr-403 220 Volt Three Phase Hydraulic Plate Roll. 4' Length 3 Gauge (1/4") Mild Steel Capacity.
- Every shop needs a good ¼ mild steel roll former and the PR-403 from Baileigh Industrial is the perfect choice.
- The PR-403 plate roll has a maximum 4' forming width, which can roll up to 3 gauge (1/4 mild sheet steel.
- This plate roll machine is completely hydraulically driven for increased durability and reliability.
- This machine uses 3 hp motor that runs on 220 volts of 3 phase powers the industrial grade hydraulic system.
- The PR-403 has all 3 rolls are driven to help handle the capacity and finish the job faster.
- The PR-403 also has an optional coning attachment for creating conical bends.
- To help with productivity, the PR-403 plate roll has a digital readout.
- This readout tracks the position of the back roll for increased accuracy and less waste.
- The top roll has a very simple release mechanism to release the finished work that has been wrapped around the top roll.
- For your safety the PR-403 includes dual emergency stop cables that are located on both the front and back of the machine.
- The PR-403 plate bending roll offers a simple and rugged design, offering the medium to small fabricator years of quality service.
- Forming Width: 48"
- Roll Speed: 4.67 rpm.
- Upper Roll Dia.: 5.91"
- Roll Adjustment Back: Hydraulic
- Minimum Forming Dia: 8.86"
- Motor: 3 hp
- Capacity (Mild Steel): .250"
- Power: 220V / 3-phase
- Shipping Weight: 4,180 lbs.
- Shipping Dimensions: 83" x 32" x 52"
